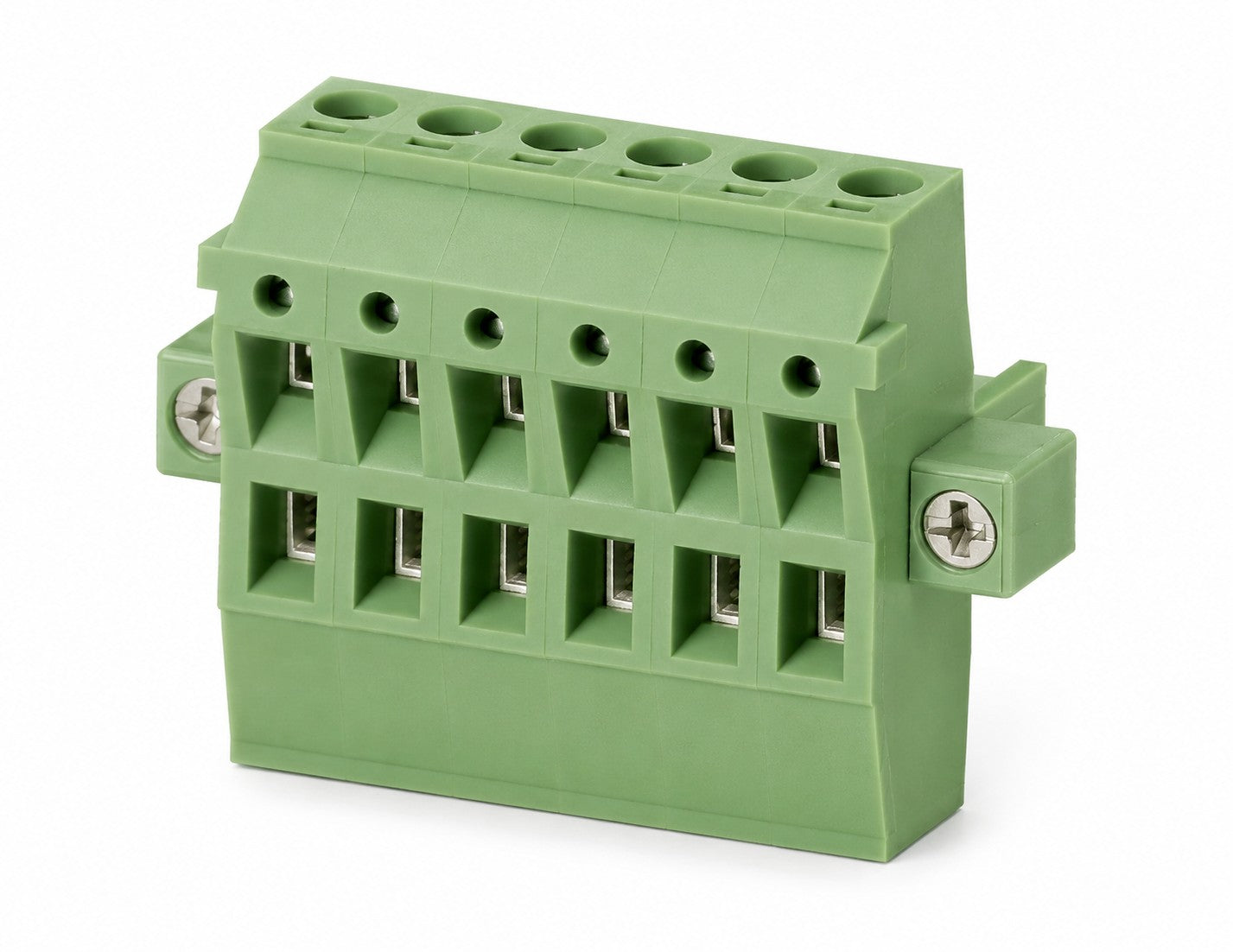

  • EB1578M SERIES Pluggable Blocks

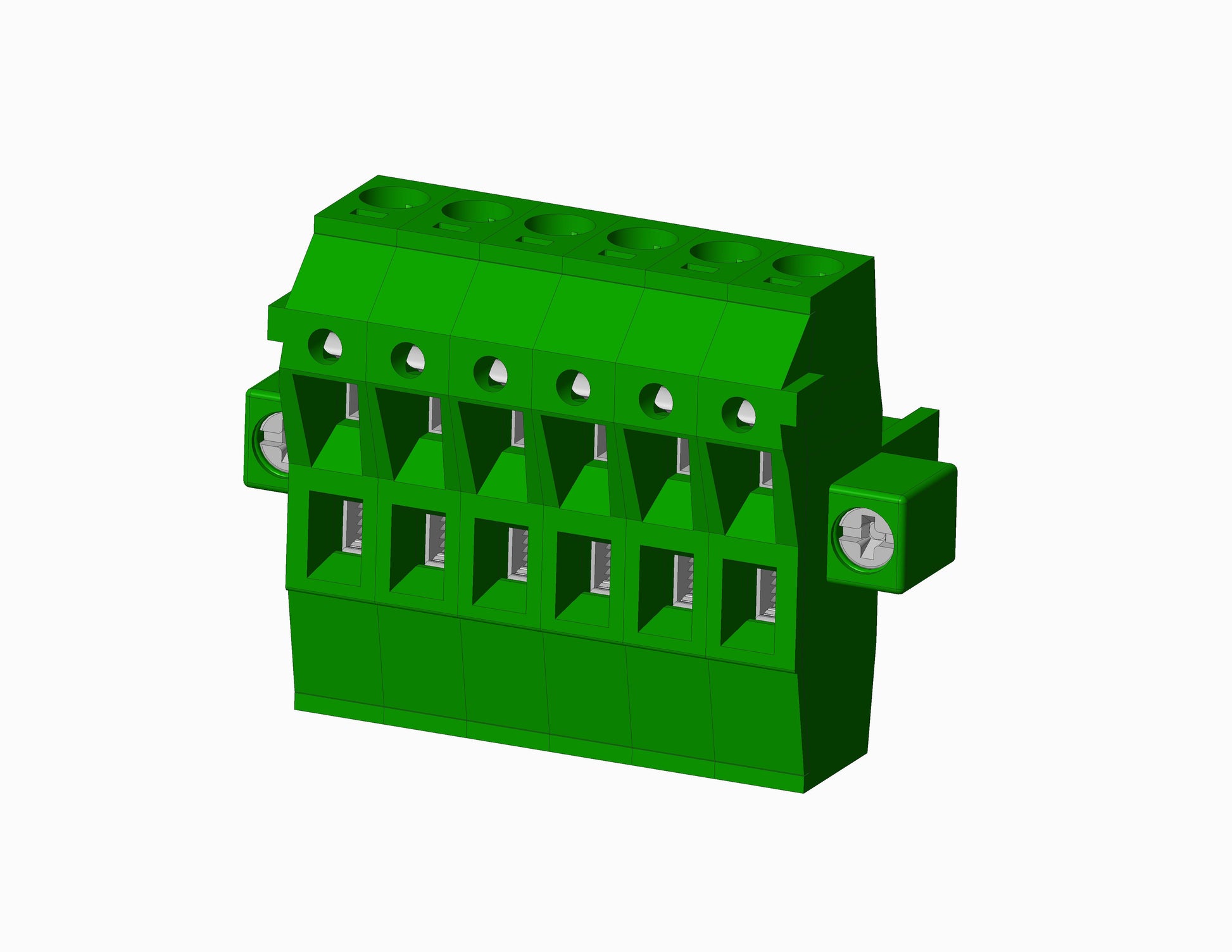

  • EB1578M SERIES Pluggable Blocks dimensional drawing
1 1

Standard

EB1578M Series - Screw - Pluggable - Wire Protector - 5.08mm

Request Sample Request 3D File

EB1578M Pluggable Block. It has a centerline spacing of 5.08mm. The voltage rating is 300 VAC. The current rating is 20 Amps. It accommodates wire sizes from 12-24AWG. It includes up to 24 positions. The torque rating is 4.3 lbs-in max. The contact block is made of Brass, Ni Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0. Feature: Mountable, Dual Wire Insertion, Single Hook on Back Side.

Maximum number of positions 24

Centerline Spacing 5.08mm Spacing (0.200")

Electrical

Voltage Rating 300 VAC

Current Rating 20 Amps

Wire Range Min / Max 12-24AWG

Mechanical

Torque 4.3 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material PhBz, Tin Plated

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw M2.5, Stainless Steel, Zinc Plated, "-" Slotted

Terminal Lever

Wire Retention Spring

Terminal Screw Size M3.0

Terminal Screw Material Steel, Zinc Plated, "-" Slotted

Contact Block Material Brass, Ni Plated

Contact Solder Pin Material

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Green
