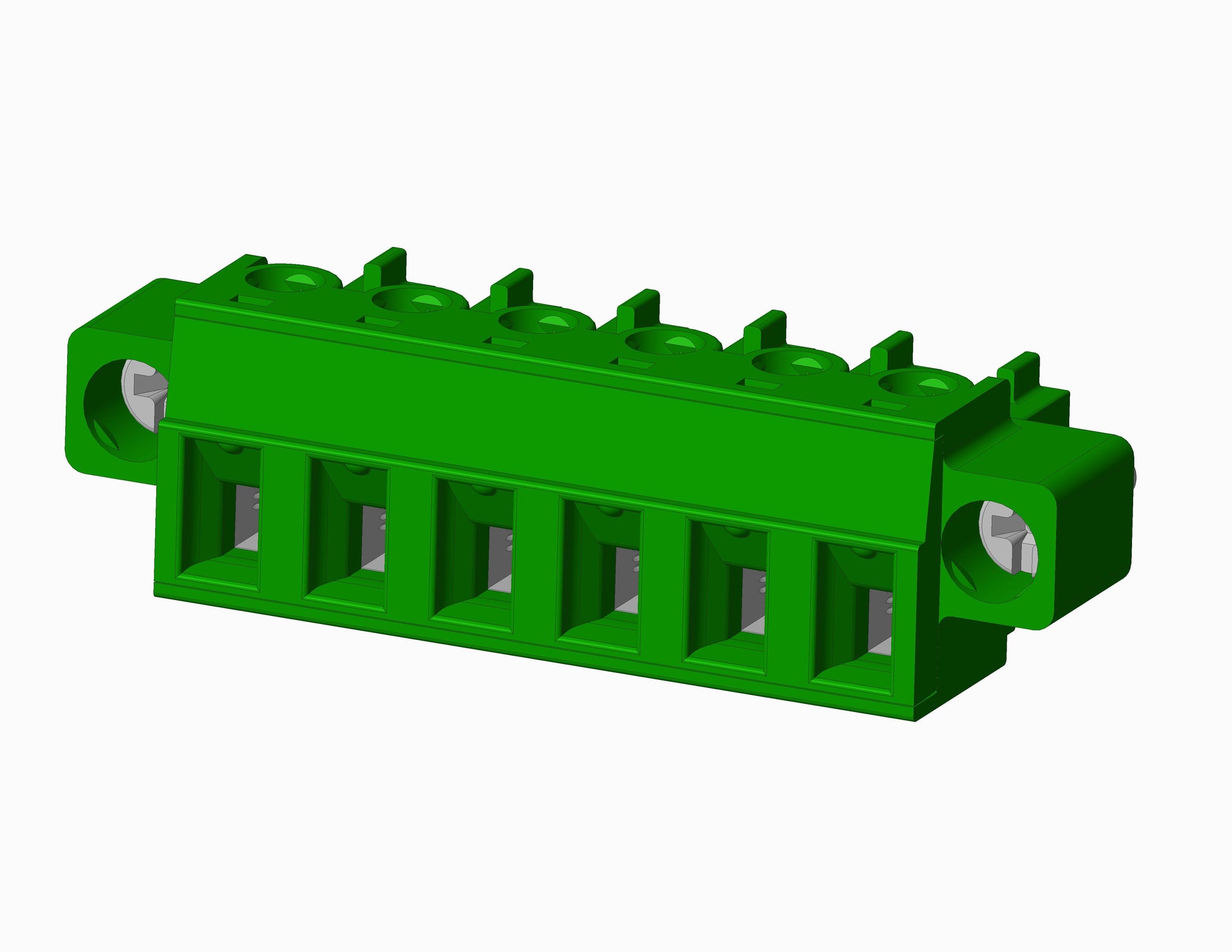

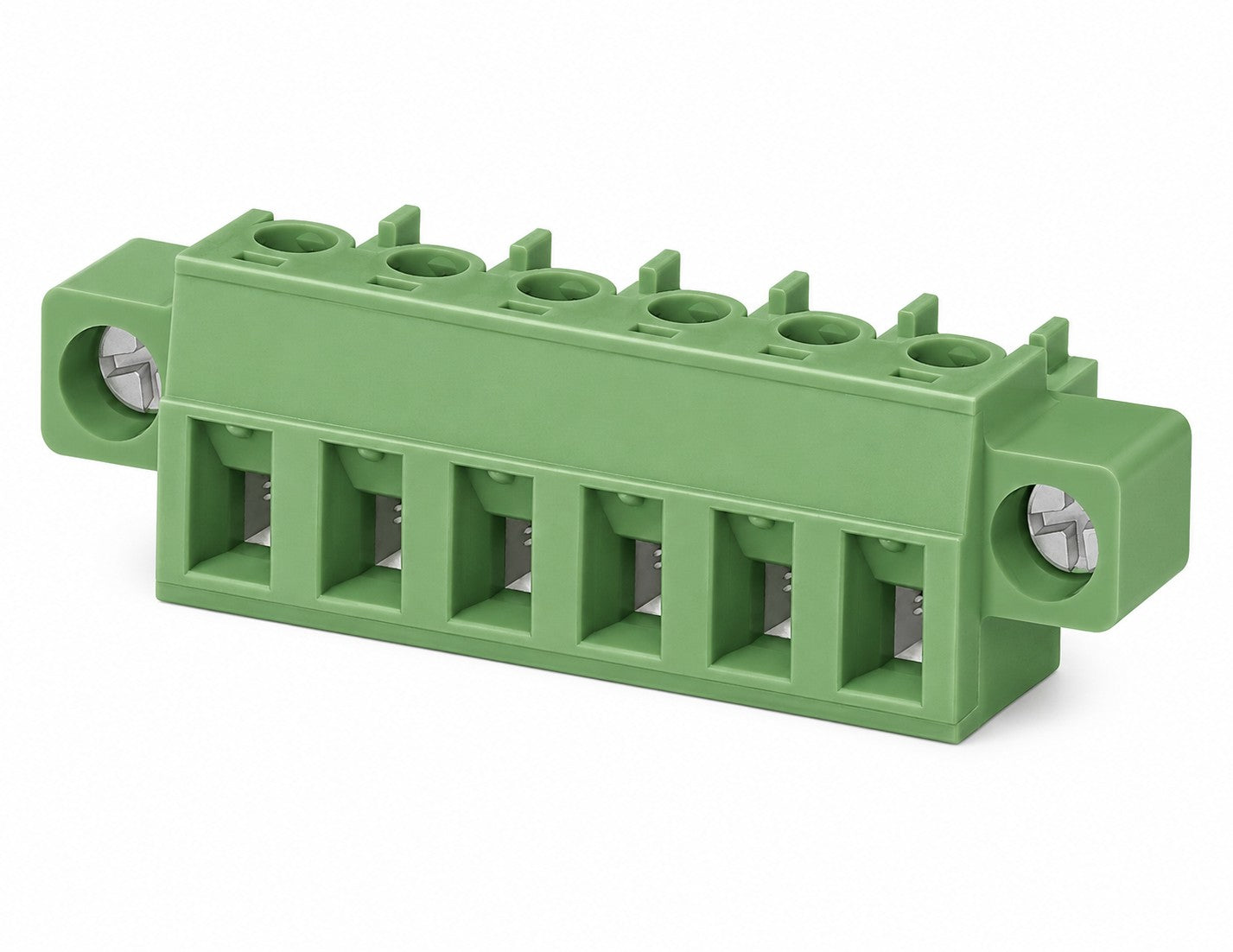

  • EB1548BM SERIES Pluggable Blocks
  • EB1548BM SERIES Pluggable Blocks dimensional drawing
1 1

Standard

EB1548BM Series - Screw - Pluggable - Rising Cage - 5.08mm

Request Sample Request 3D File

EB1548BM Pluggable Block. It has a centerline spacing of 5.08mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 14-30AWG. It includes up to 24 positions. The contact block is made of Brass, (CuZn). The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 5.08mm Spacing (0.200")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 14-30AWG

Mechanical

Torque YES

Soldering Temperatures YES

Insulator Body Material: Polyamide, UL 94V-0

Contact Clip Material: PhBz (CuSn)

Contact Housing Material: X

Contact Cam: X

Retainer Ring: X

Mounting Flange Screw: M2.5, Stainless Steel, Zinc Plated, "-" Slotted

Terminal Lever: X

Wire Retention Spring: X

Terminal Screw Size: M2.0

Terminal Screw Material: X

Contact Block Material: Brass, (CuZn)

Contact Solder Pin Material: X

Solder Mounting Plate: X

Flange Screw Cavity: X

Mounting Flange Nut: X

Wire Guard Material: X

Color: Green

Cover: X

Product Notes

X

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
