Terminal Blocks >  Screw > Pluggable > Rising Cage > Standard (5mm-5.08mm) > EB1548A
Approvals
cRU US logo cRU US logo
  • EB1548A SERIES Pluggable Blocks
  • EB1548A SERIES Pluggable Blocks dimensional drawing
1 1

Standard

EB1548A Series - Screw - Pluggable - Rising Cage - 5.08mm

Request Sample Request 3D File

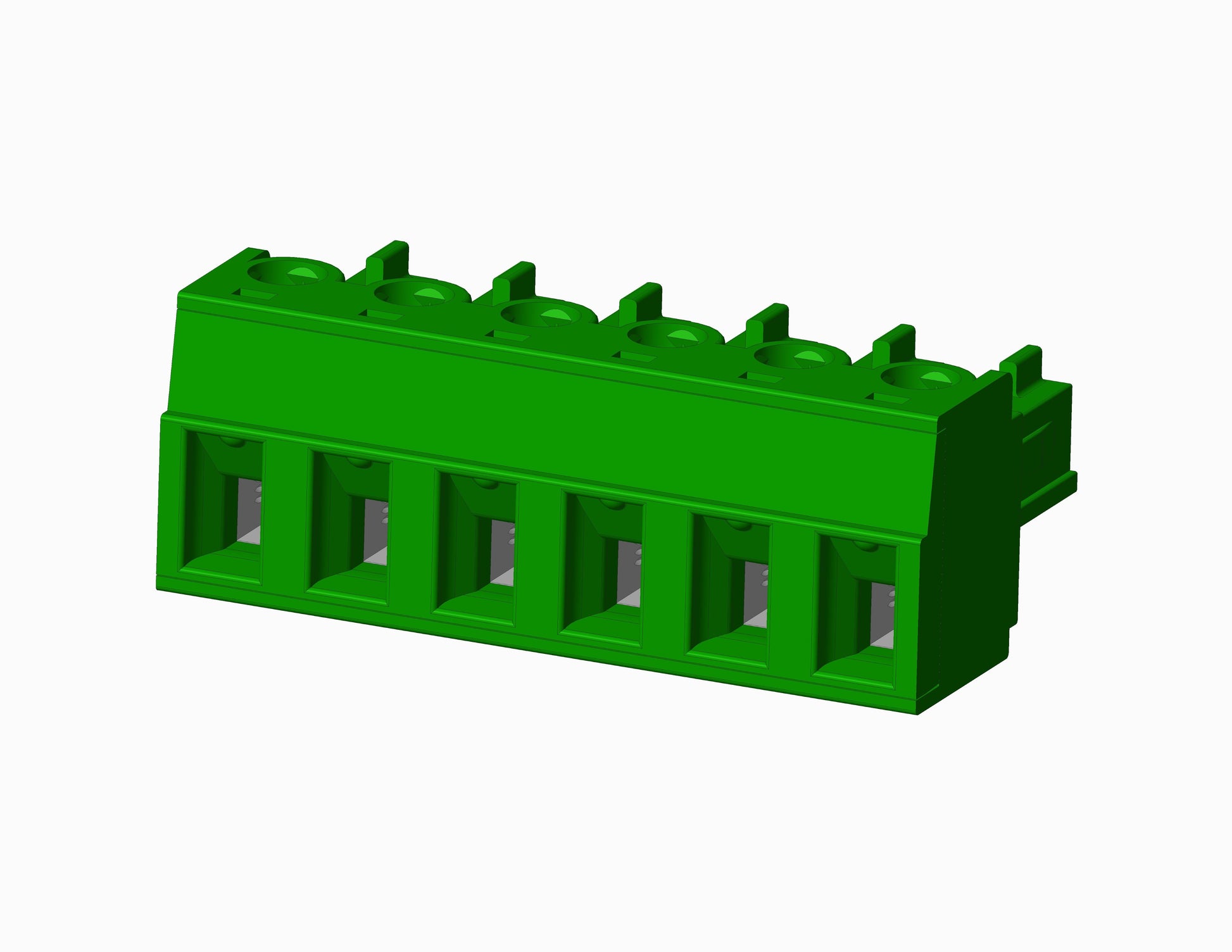

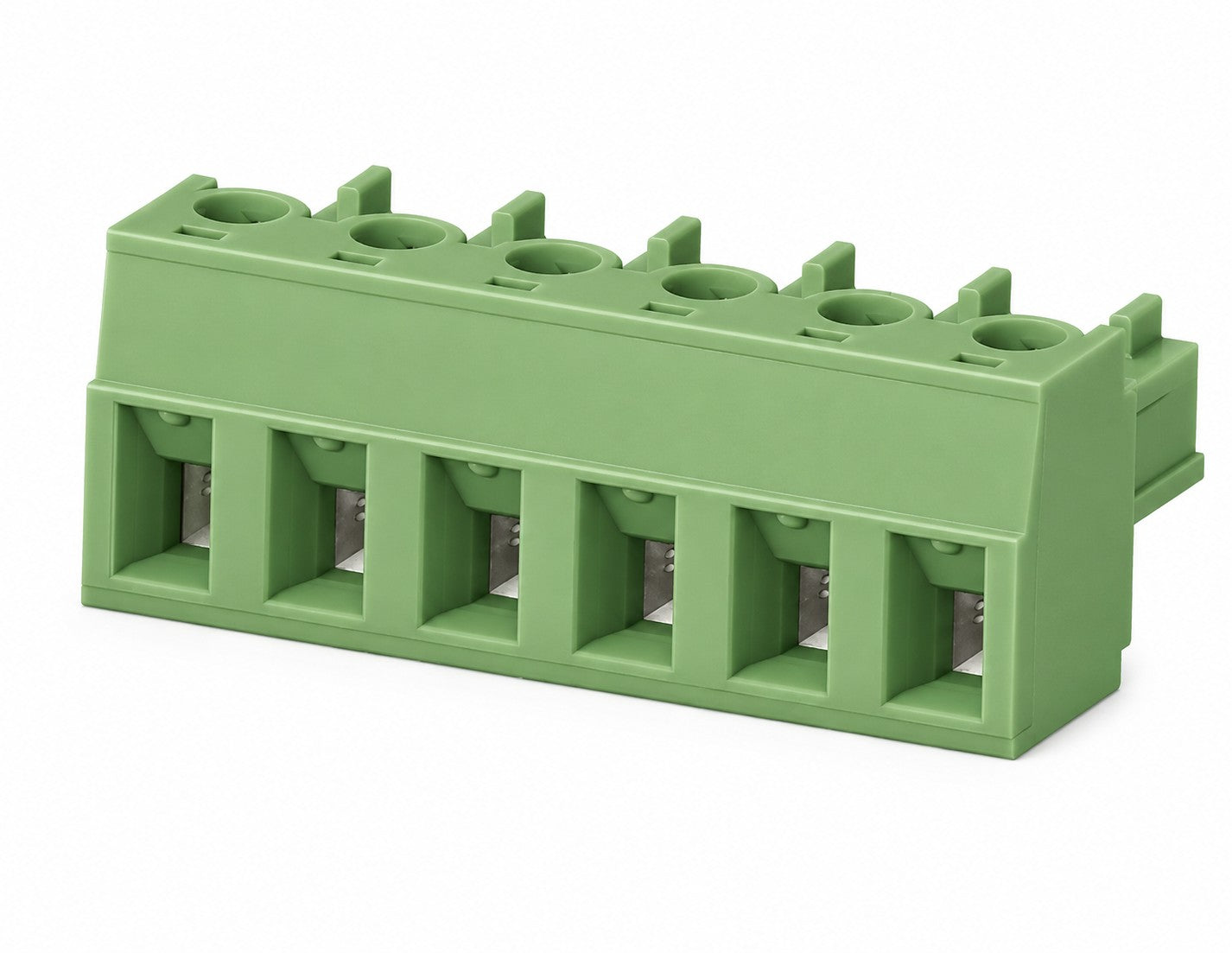

EB1548A Pluggable Block. It has a centerline spacing of 5.08mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 14-30AWG. It includes up to 24 positions. The torque rating is 2.0 lbs-in max. The contact block is made of Brass, (CuZn). It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0. Feature: Contact on Down Side.

Maximum number of positions 24

Centerline Spacing 5.08mm Spacing (0.200")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 14-30AWG

Mechanical

Torque 2.0 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size M2.0

Terminal Screw Material Steel, Zinc Plated, "-" Slotted

Contact Block Material Brass, (CuZn)

Contact Solder Pin Material PhBz, (CuSn)

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Green

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
