EB1525M Series - Screw - Pluggable - Rising Cage - 5.0mm

Request Sample Request 3D File

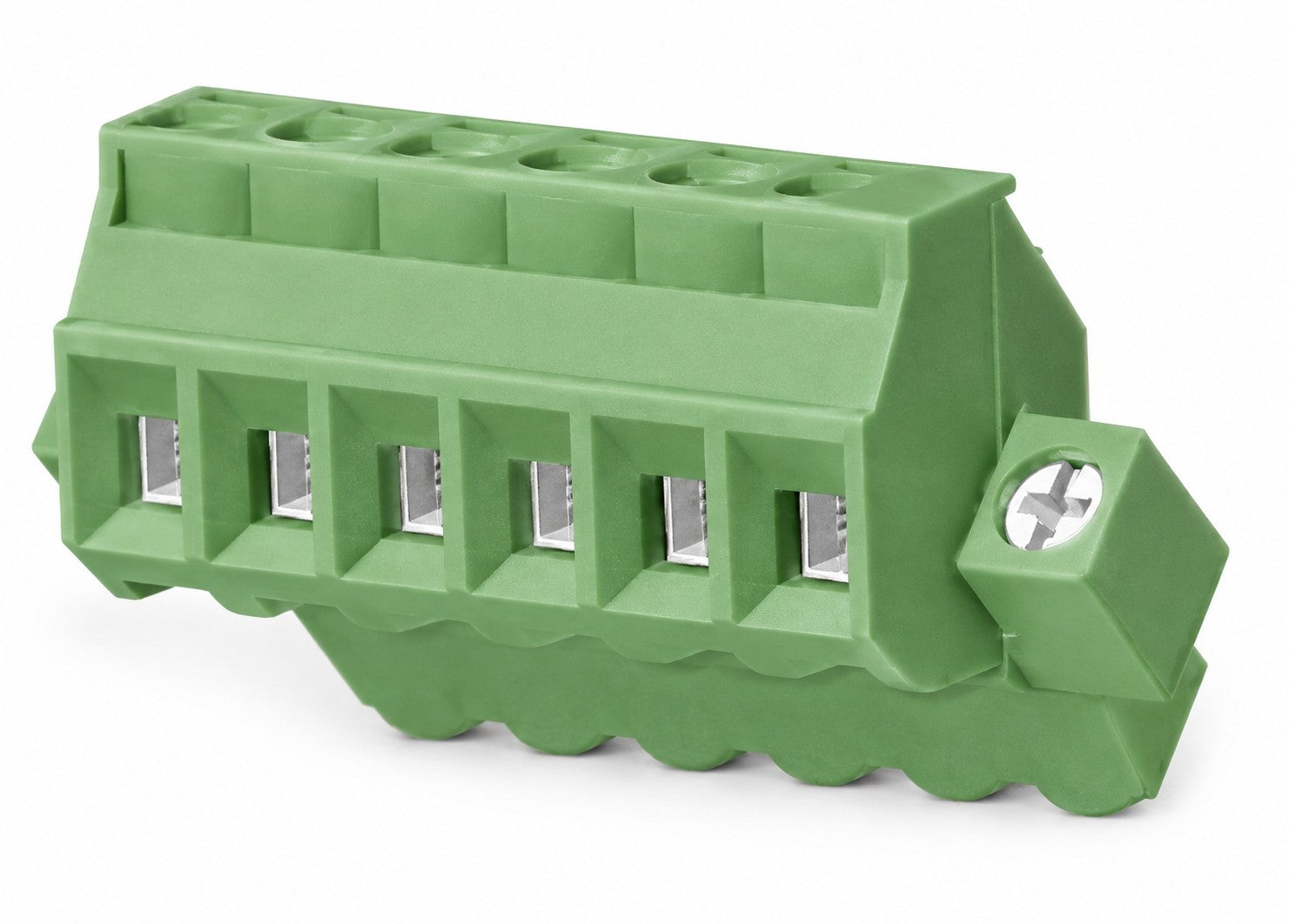

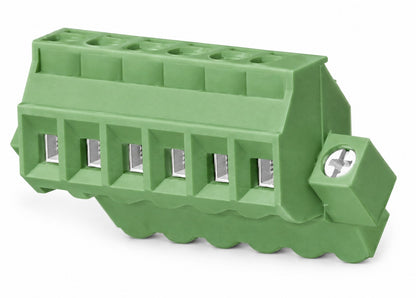

EB1525M-XX-X00 45 degree screw pluggable connector with standard 5mm centerline spacing. It has a voltage rating of 300 VAC and a current rating of 20 Amps. It accommodates wire sizes from 12–22 AWG. The torque rating is 4.0 lbs-in. The insulator body is constructed from polyamide. The contact clip is made of phosphor bronze, tin plated. The contact housing is made of steel, zinc plated. It includes an M3.0 terminal screw made of steel, zinc plated. It has mounting flange screws made of steel, zinc plated.

Maximum number of positions 24

Centerline Spacing 5.00 mm Spacing

Mechanical

Torque: 4.0lbs-in

Electrical

Voltage Rating: 300 VAC

Current Rating: 20

Wire Range Min / Max: 12-22AWG

Material

Insulator Body Material: Polyamide

Contact Clip Material: PhBz, Tin Plated

Mounting Flange Screw: Steel, Zinc Plated

Terminal Screw Size: M3.0

Terminal Screw Material: Steel, Zinc Plated

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Primary Mating Pairs

AC1500M SERIES Pluggable Headers

AC1500M Series - Shrouded - (/5.0mm)

HC1500M-XX-500 SERIES Pluggable Headers

HC1500M-XX-500 Series - Shrouded - (/5.0mm)

HC1500M-XX-510 SERIES Pluggable Headers

HC1500M-XX-510 Series - Shrouded - (/5.0mm)

HC1500M-XX-520 SERIES Pluggable Headers

HC1500M-XX-520 Series - Shrouded - (/5.0mm)

VC1500M-XX-500 SERIES Pluggable Headers

VC1500M-XX-500 Series - Shrouded - (/5.0mm)

VC1500M-XX-510 SERIES Pluggable Headers

VC1500M-XX-510 Series - Shrouded - (/5.0mm)

VC1500M-XX-520 SERIES Pluggable Headers

VC1500M-XX-520 Series - Shrouded - (/5.0mm)
