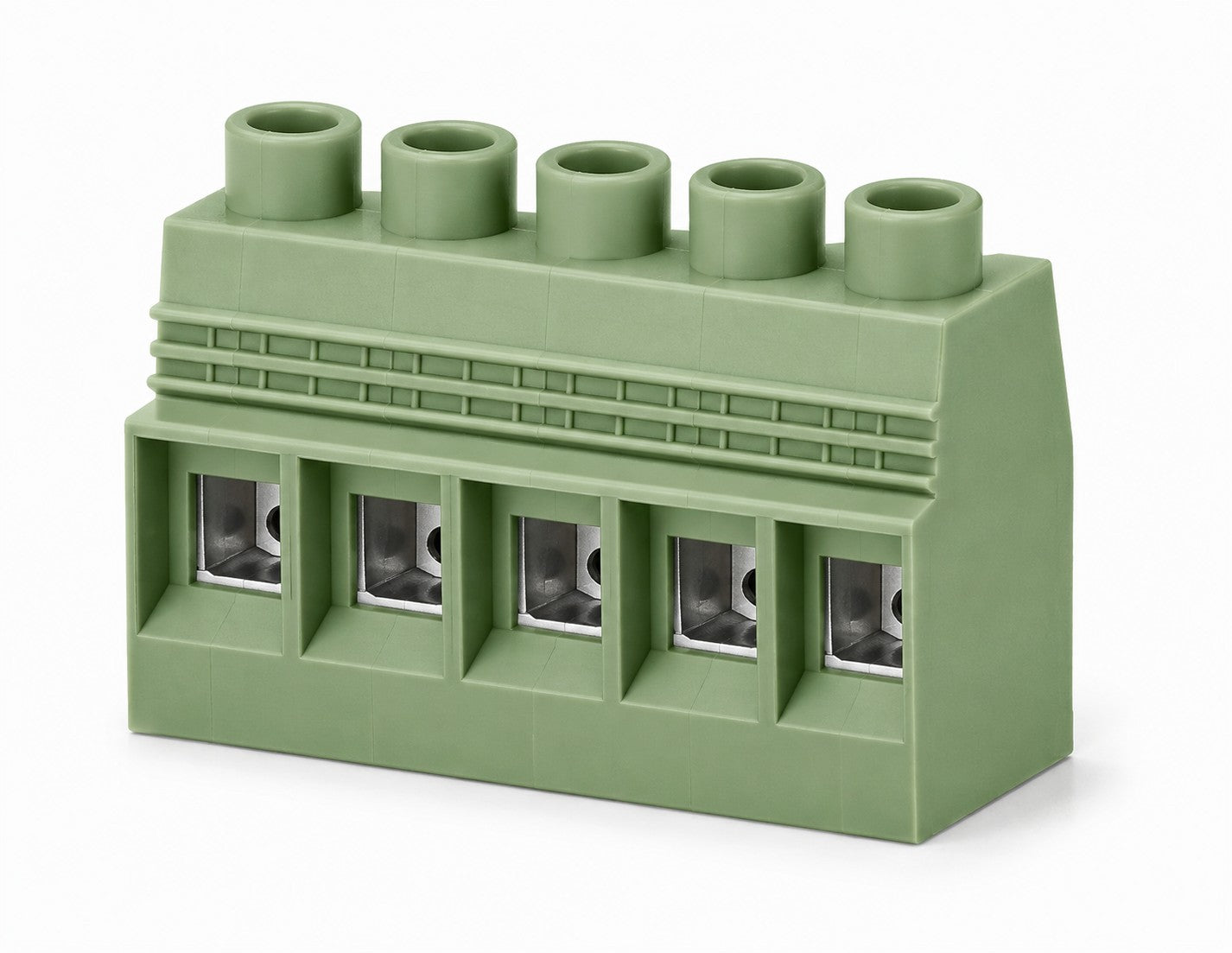

  • EB1515 SERIES Rising Clamp Blocks

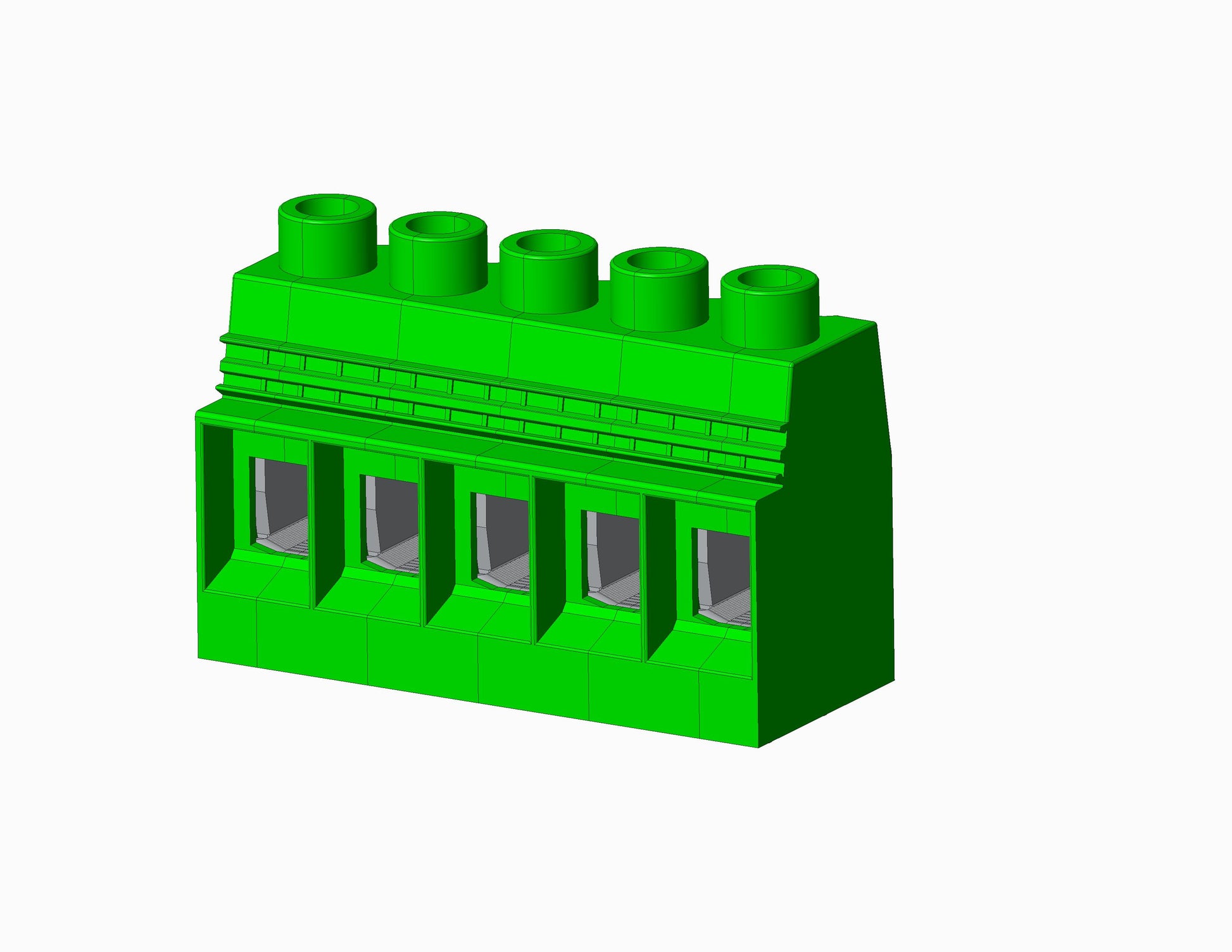

  • EB1515 SERIES Rising Cage Blocks dimensional drawing
1 1

Power

EB1515 Series - Screw - Direct Solder - Rising Cage - 15.0mm

Request Sample Request 3D File

EB1515 Rising Cage Pluggable Blocks. It has a centerline spacing of 15.0mm. The voltage rating is 600 VAC. The current rating is 127 Amps. It accommodates wire sizes from 1-20AWG. It includes up to 10 positions. The torque rating is 36.5 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. The contact block is made of Steel Stamping, Zinc Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0. Feature: Dual Row, Dual Pin.

Maximum number of positions 10

Centerline Spacing 15.00mm Spacing (0.591")

Electrical

Voltage Rating 600 VAC

Current Rating 127 Amps

Wire Range Min / Max 1-20AWG

Mechanical

Torque 36.5 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size M6.0

Terminal Screw Material Steel, Zinc Plated, "-" Slotted

Contact Block Material Steel Stamping, Zinc Plated

Contact Solder Pin Material Copper, Tin Plated

Solder Mounting Plate

Flange Screw Cavity
