EB1509M Series - Screw - Pluggable - Rising Cage - 5.08mm

Request Sample Request 3D File

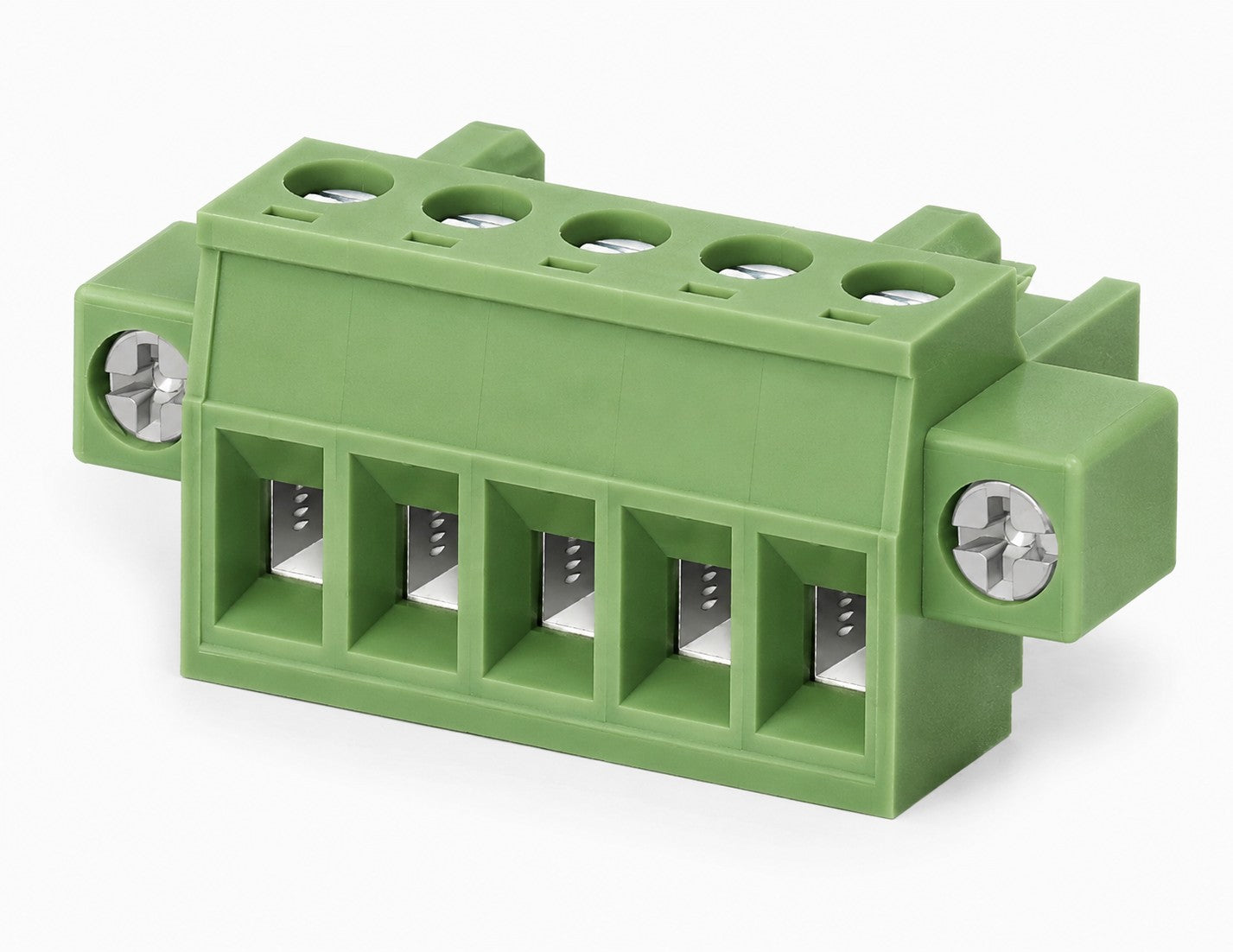

EB1509M-XX-X00 Low profile (main body below the pcb) pluggable connector, rising cage screw connection, 5.08mm pin spacing with mounting ends for power applications. It has a voltage rating of 300 VAC and a current rating of 20 Amps. It accommodates wire sizes from 12–24 AWG. The torque rating is 5.0 lbs-in. The insulator body is constructed from polyamide. The contact clip is made of phosphor bronze, tin-plated. The contact housing is made of steel, zinc-plated. It includes an M3.0 terminal screw made of steel, zinc-plated. It has mounting flange screws made of steel, zinc plated.

Maximum number of positions 24

Centerline Spacing 5.08mm Spacing

Mechanical

Torque: 5.0lbs-in

Electrical

Voltage Rating: 300 VAC

Current Rating: 20

Wire Range Min / Max: 12-24AWG

Material

Insulator Body Material: Polyamide

Contact Clip Material: PhBz, Tin Plated

Mounting Flange Screw: Steel, Zinc Plated

Terminal Screw Size: M3.0

Terminal Screw Material: Steel, Zinc Plated

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Primary Mating Pairs

AC1508M SERIES Pluggable Headers

AC1508M Series - Shrouded - (/5.08mm)

HC1508M-XX-500 SERIES Pluggable Headers

HC1508M-XX-500 Series - Shrouded - (/5.08mm)

HC1508M-XX-510 SERIES Pluggable Headers

HC1508M-XX-510 Series - Shrouded - (/5.08mm)

HC1508M-XX-520 SERIES Pluggable Headers

HC1508M-XX-520 Series - Shrouded - (/5.08mm)

VC1508M-XX-500 SERIES Pluggable Headers

VC1508M-XX-500 Series - Shrouded - (/5.08mm)

VC1508M-XX-510 SERIES Pluggable Headers

VC1508M-XX-510 Series - Shrouded - (/5.08mm)

VC1508M-XX-520 SERIES Pluggable Headers

VC1508M-XX-520 Series - Shrouded - (/5.08mm)
