Compact

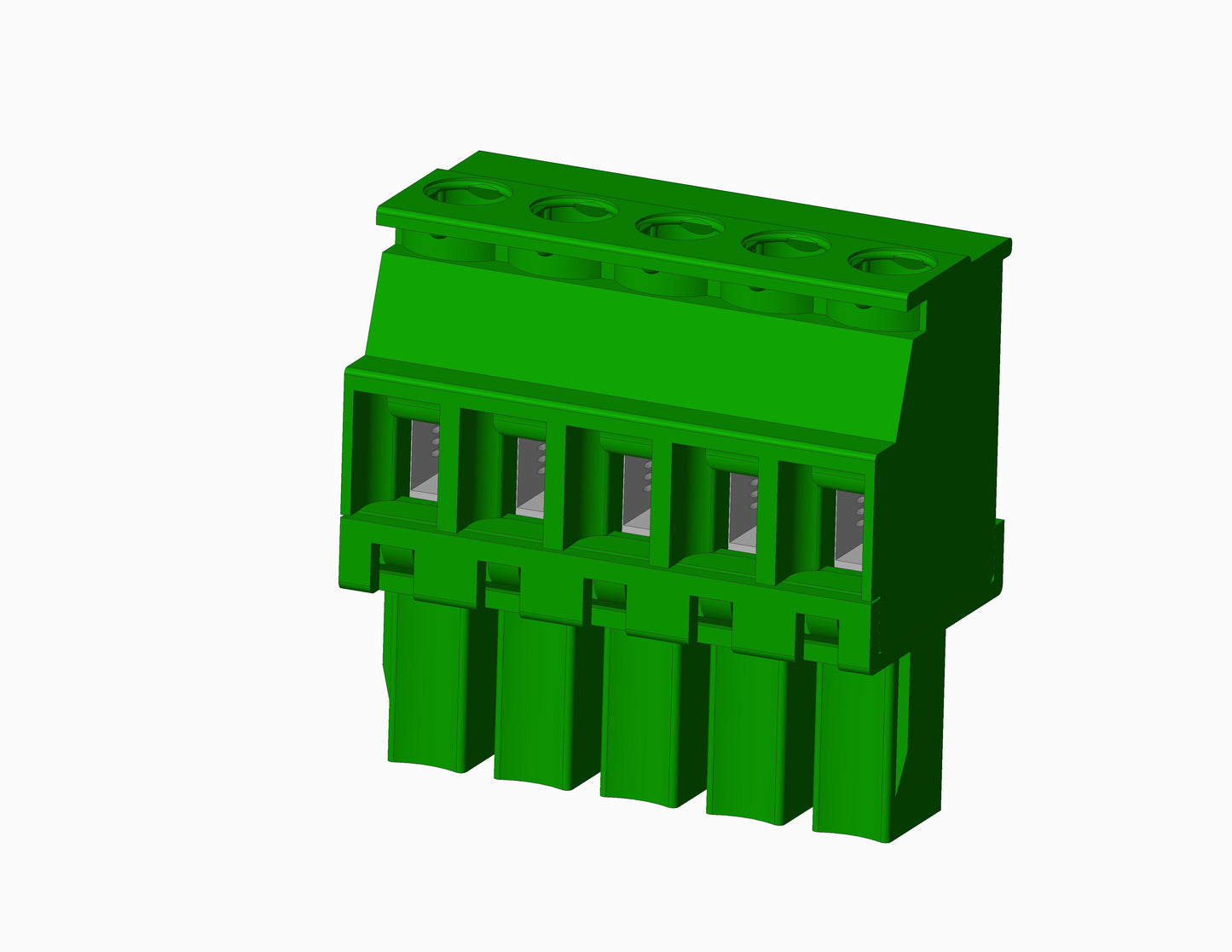

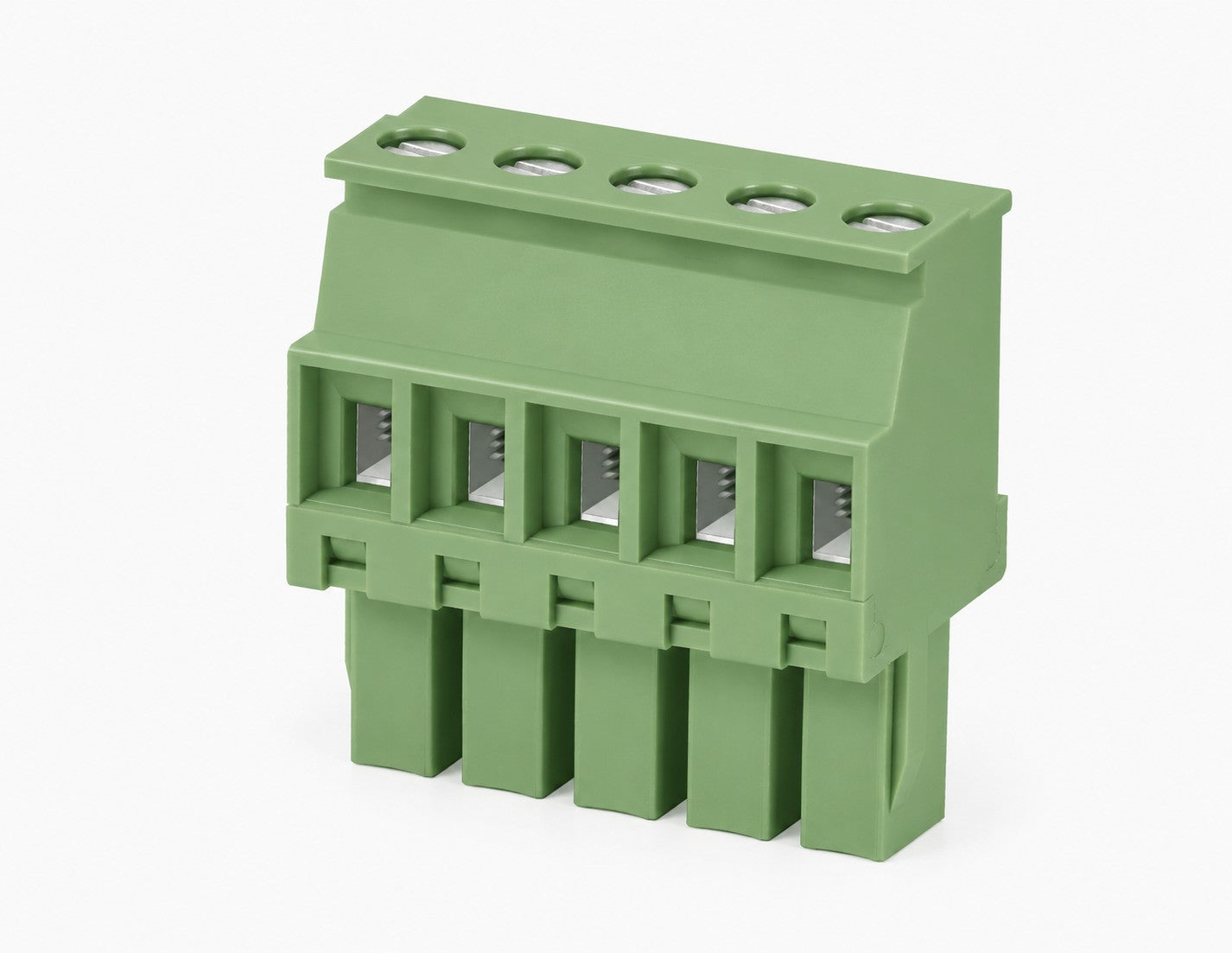

EB1381B Series - Screw - Pluggable - Rising Cage - 3.81mm

EB1381B Pluggable Block. It has a centerline spacing of 3.81mm. The voltage rating is 300 VAC. The current rating is 8 Amps. It accommodates wire sizes from 16-28AWG. It includes up to 24 positions. The torque rating is 1.7 lbs-in max. The contact block is made of Brass, 160-240µ" Nickel Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Thermoplastic, UL 94V-0. Feature: Insertion Key on Back Side.

Maximum number of positions 24

Centerline Spacing 3.81mm Spacing (0.150")

Electrical

Voltage Rating 300 VAC

Current Rating 8 Amps

Wire Range Min / Max 16-28AWG

Mechanical

Torque 1.7 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material Thermoplastic, UL 94V-0

Contact Clip Material PhBz, Tin Plated

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size M2.0

Terminal Screw Material Steel, Zinc Plated, "-" Slotted

Contact Block Material Brass, 160-240µ" Nickel Plated

Contact Solder Pin Material

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.
