EB1258L Series - Screw - Direct Solder - Rising Cage - 3.5mm

Request Sample Request 3D File

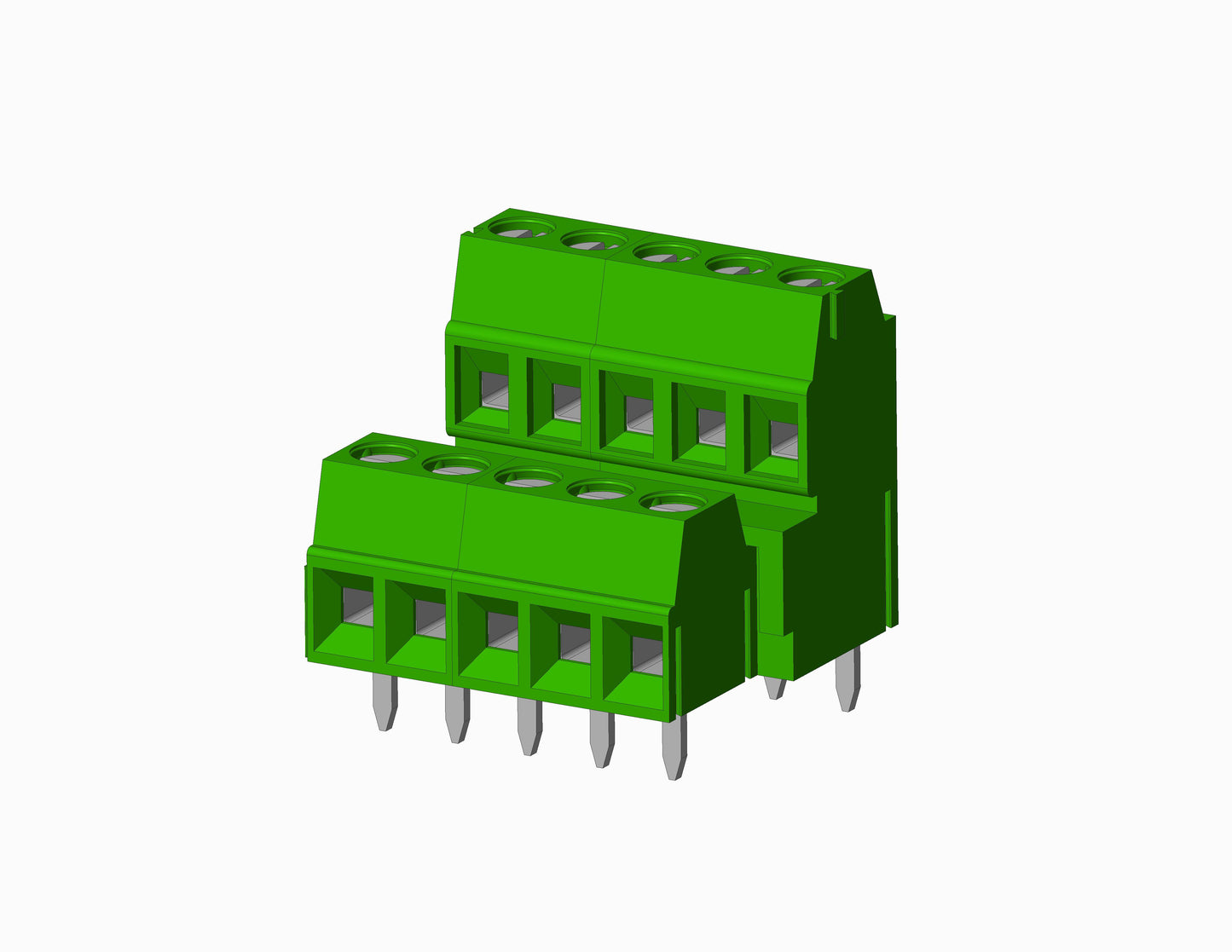

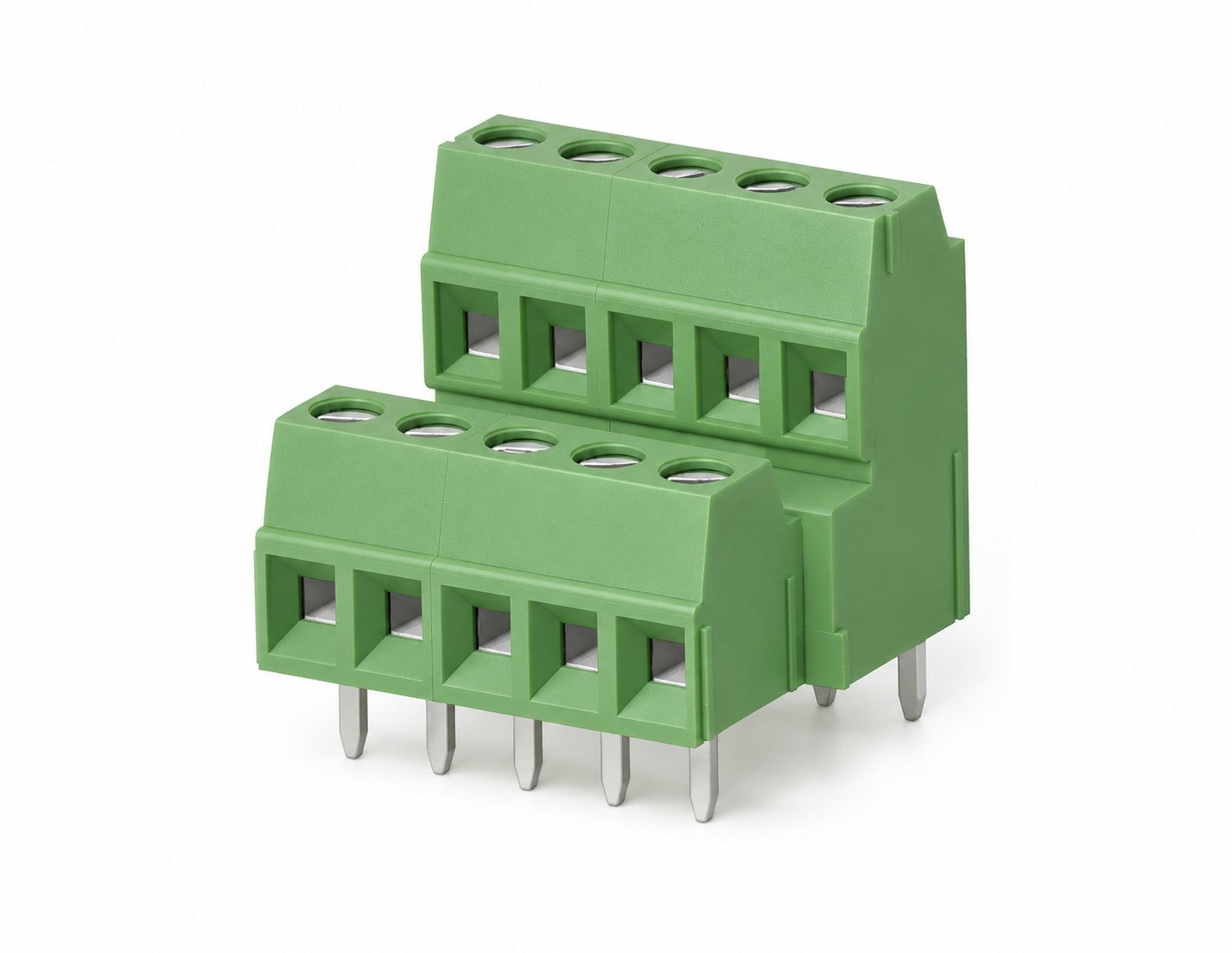

EB1258L Rising Cage Pluggable Blocks. It has a centerline spacing of 3.5mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 16-24AWG. It includes up to 48 positions. The torque rating is 1.7 lbs-in max. The contact block is made of Brass, Ni Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0. Feature: Dual Tier, Left Oriented.

Maximum number of positions 48

Centerline Spacing 3.50mm Spacing (0.138")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 16-24AWG

Mechanical

Torque 1.7 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size M2.0

Terminal Screw Material Steel, Zinc Plated, "-" Slotted

Contact Block Material Brass, Ni Plated

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Green

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: EB1258L Series - Screw - Direct Solder - Rising Cage (3.5mm)
