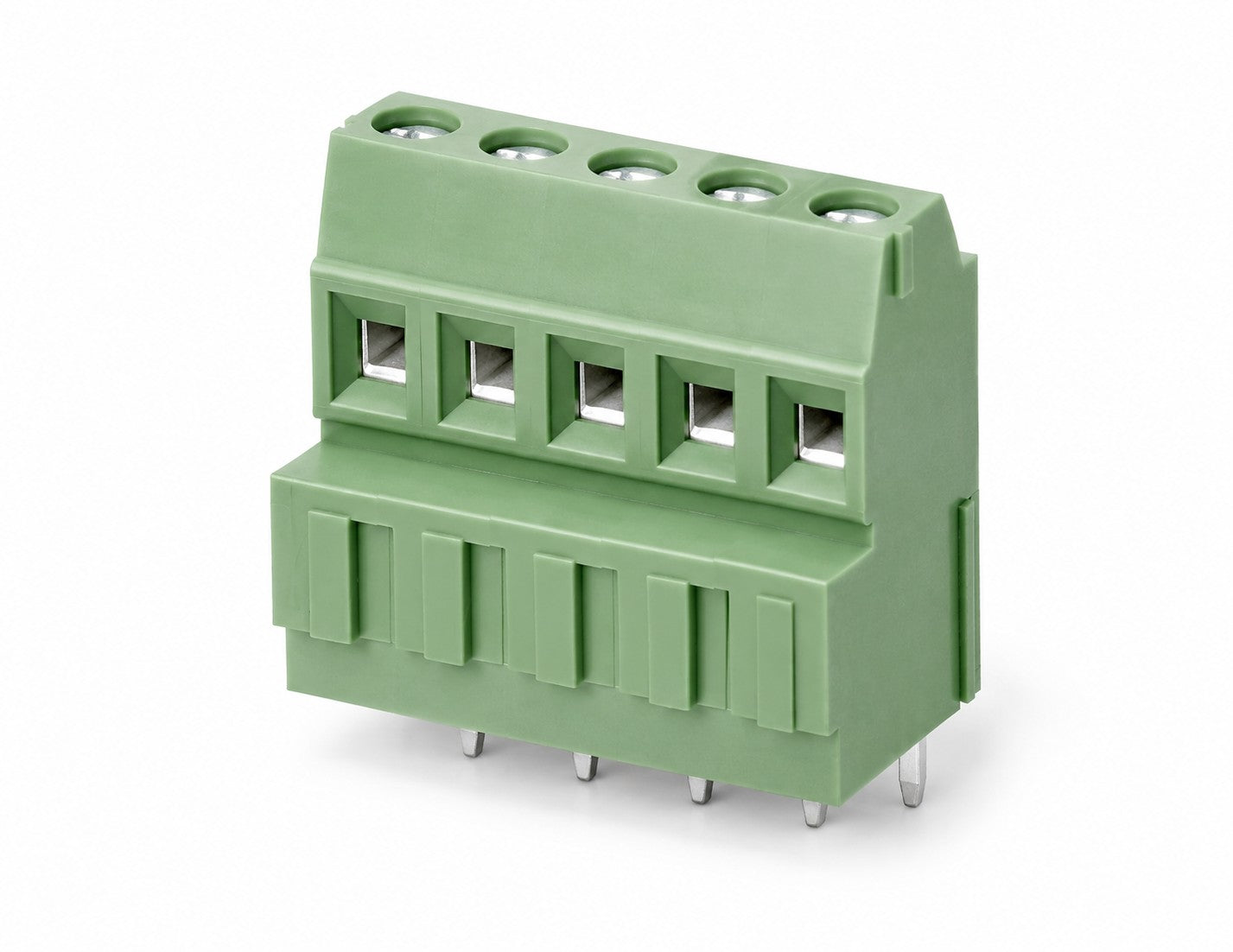

Name: EB1257 SERIES Rising Cage Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Screw > Direct Solder > Rising Cage > Compact (3.5mm-4.57mm) > EB1257

Approvals

1 1

Compact

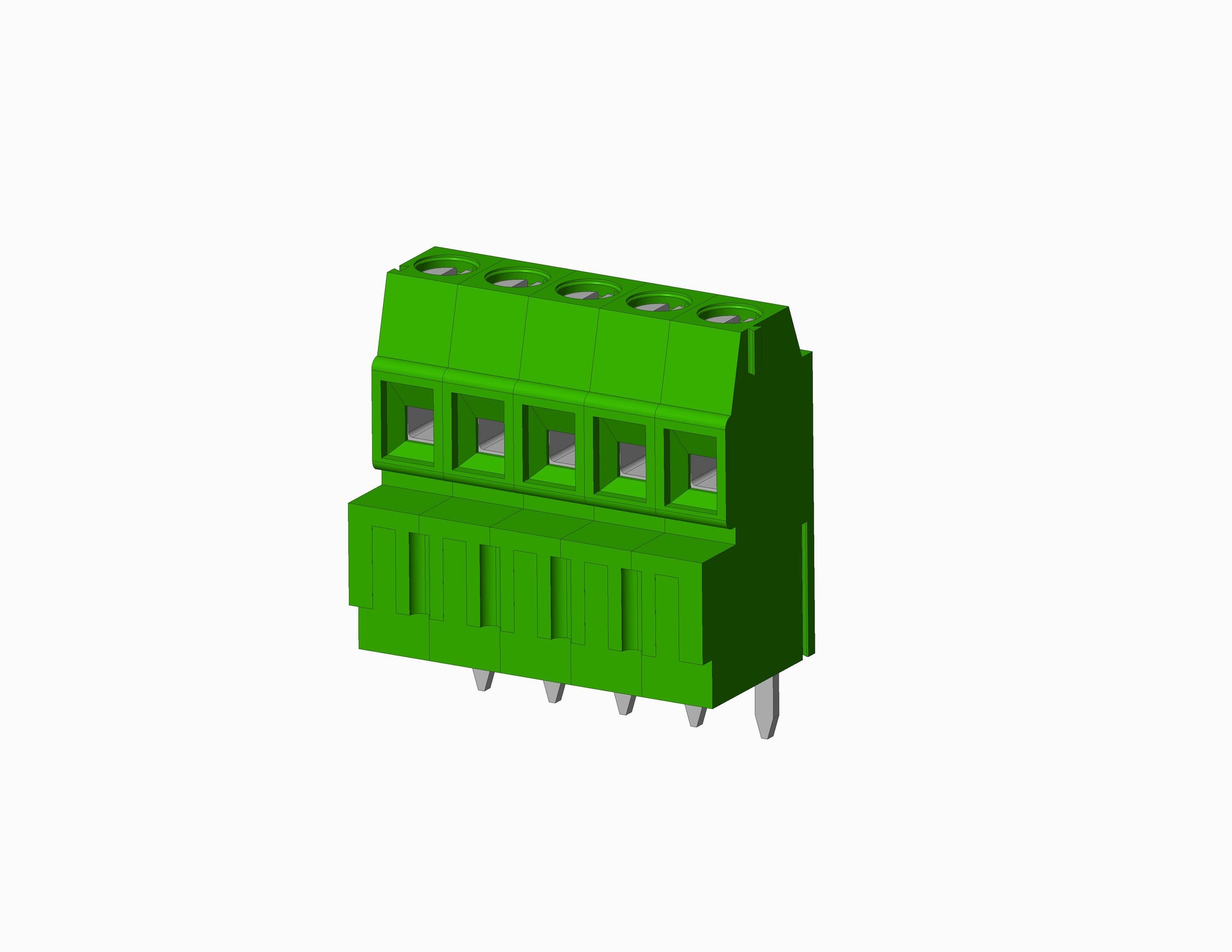

EB1257 Series - Screw - Direct Solder - Rising Cage - 3.81mm

Request Sample Request 3D File

EB1257 Rising Cage Pluggable Blocks. It has a centerline spacing of 3.81mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 16-24AWG. It includes up to 24 positions. The torque rating is 1.7 lbs-in max. The contact block is made of Brass, Ni Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 3.81mm Spacing (0.150")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 16-24AWG

Mechanical

Torque 1.7 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M2.0

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Block Material: Brass, Ni Plated

Contact Solder Pin Material: Brass, Tin Plated

Color: Green

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
