Name: EB1229V SERIES Push-Button Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Direct Solder > Push-Button > Micro (2.5mm-2.54mm) > EB1229V

Approvals

1 1

Micro

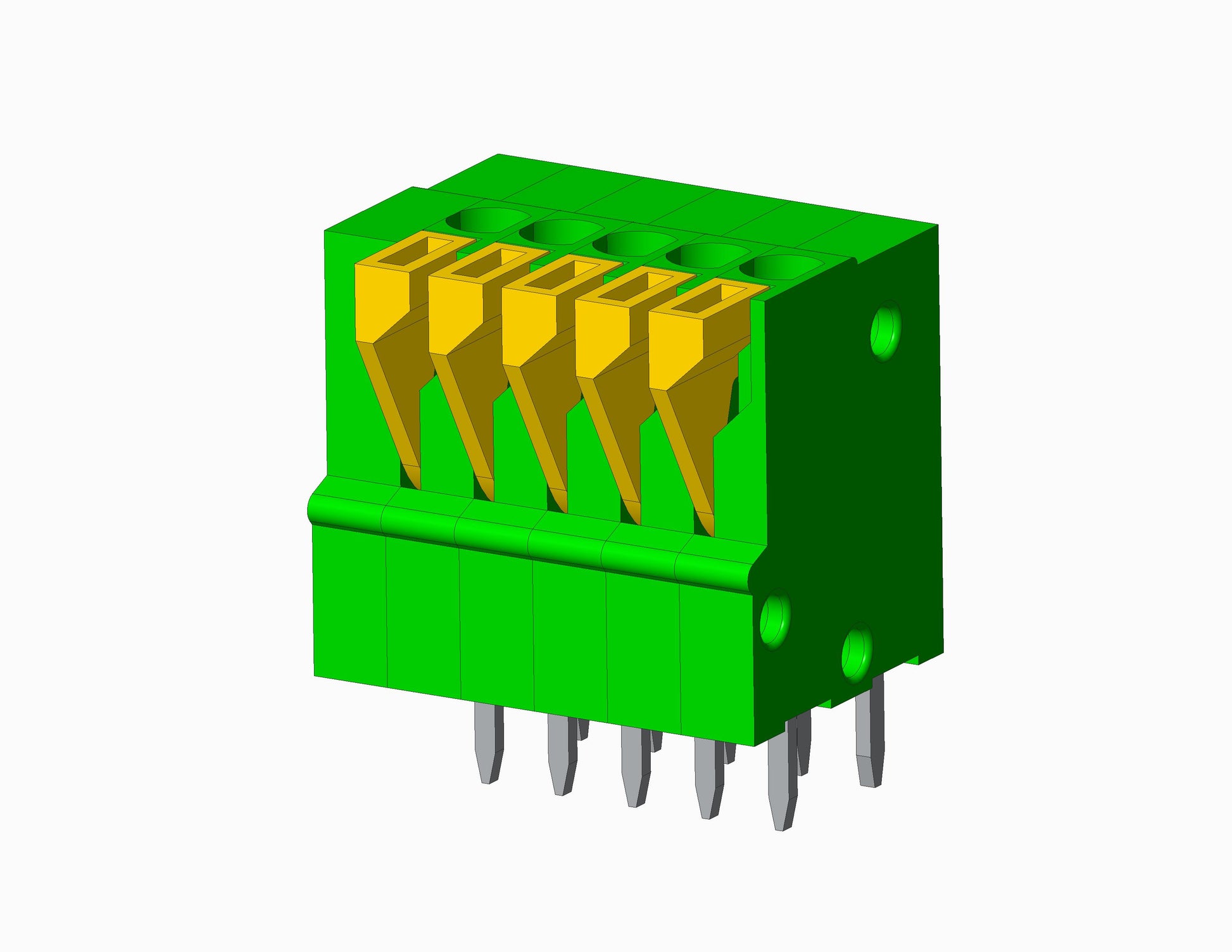

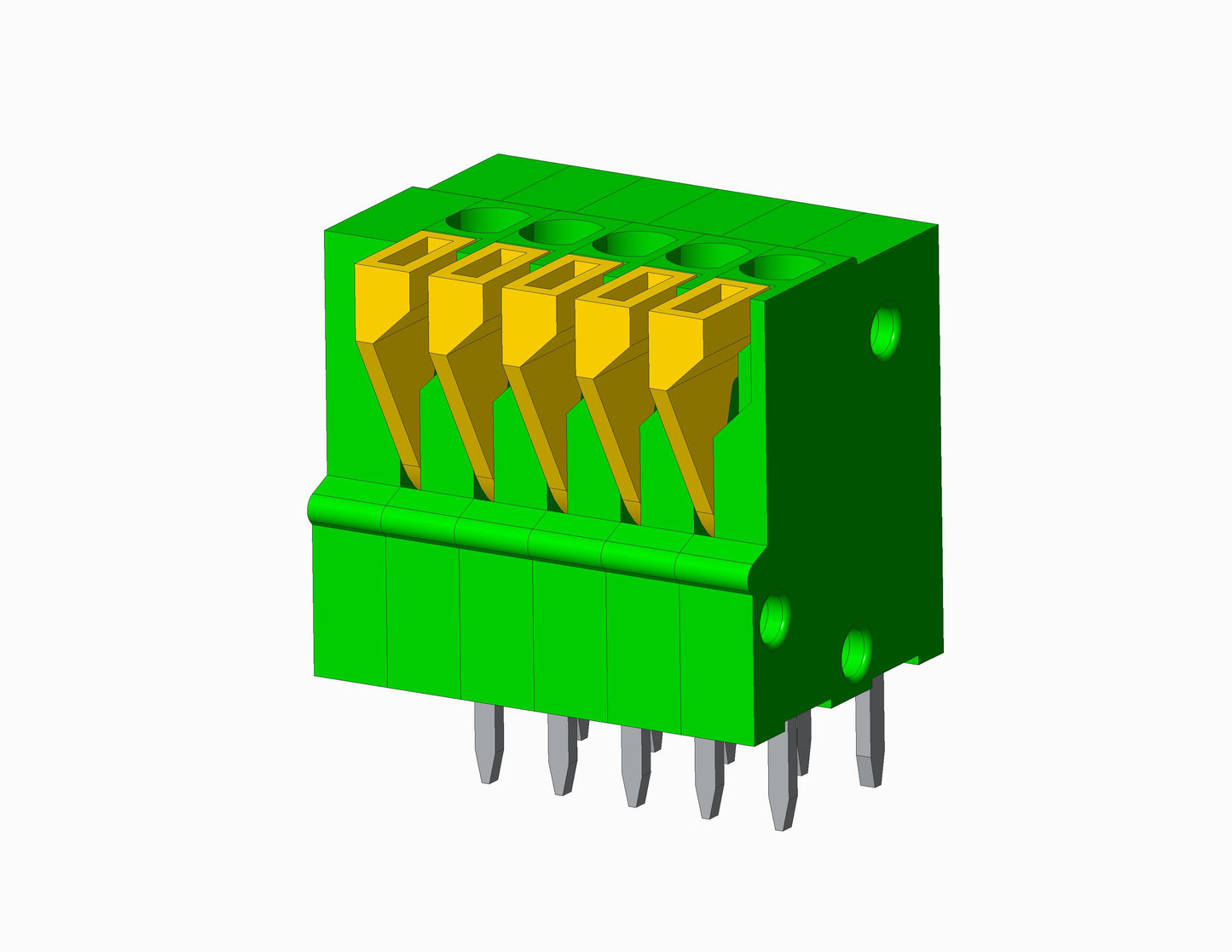

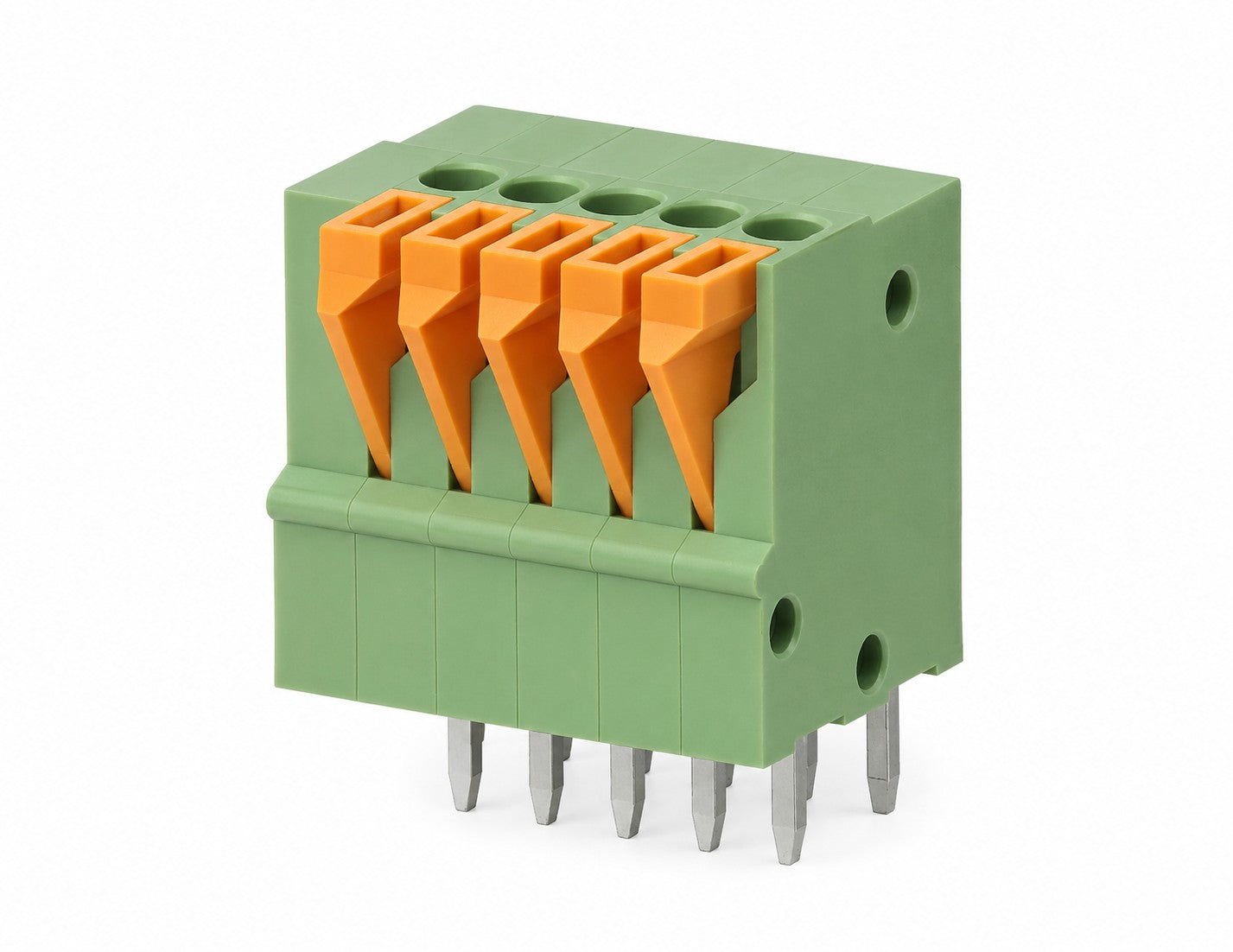

EB1229V Series - Spring - Direct Solder - Push-Button - 2.54mm

Request Sample Request 3D File

EB1229V Push-Button Pluggable Blocks. It has a centerline spacing of 2.54mm. The voltage rating is 150 VAC. The current rating is 2 Amps. It accommodates wire sizes from 20-26AWG. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The contact block is made of Brass, Tin Plated. The housing is constructed from Polyamide, UL 94V-0. Feature: Lever Action.

Maximum number of positions 24

Centerline Spacing 2.54mm Spacing (0.100")

Electrical

Voltage Rating 150 VAC

Current Rating 2 Amps

Wire Range Min / Max 20-26AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Wire Retention Spring: Stainless Steel

Contact Block Material: Brass, Tin Plated

Color: Green

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
