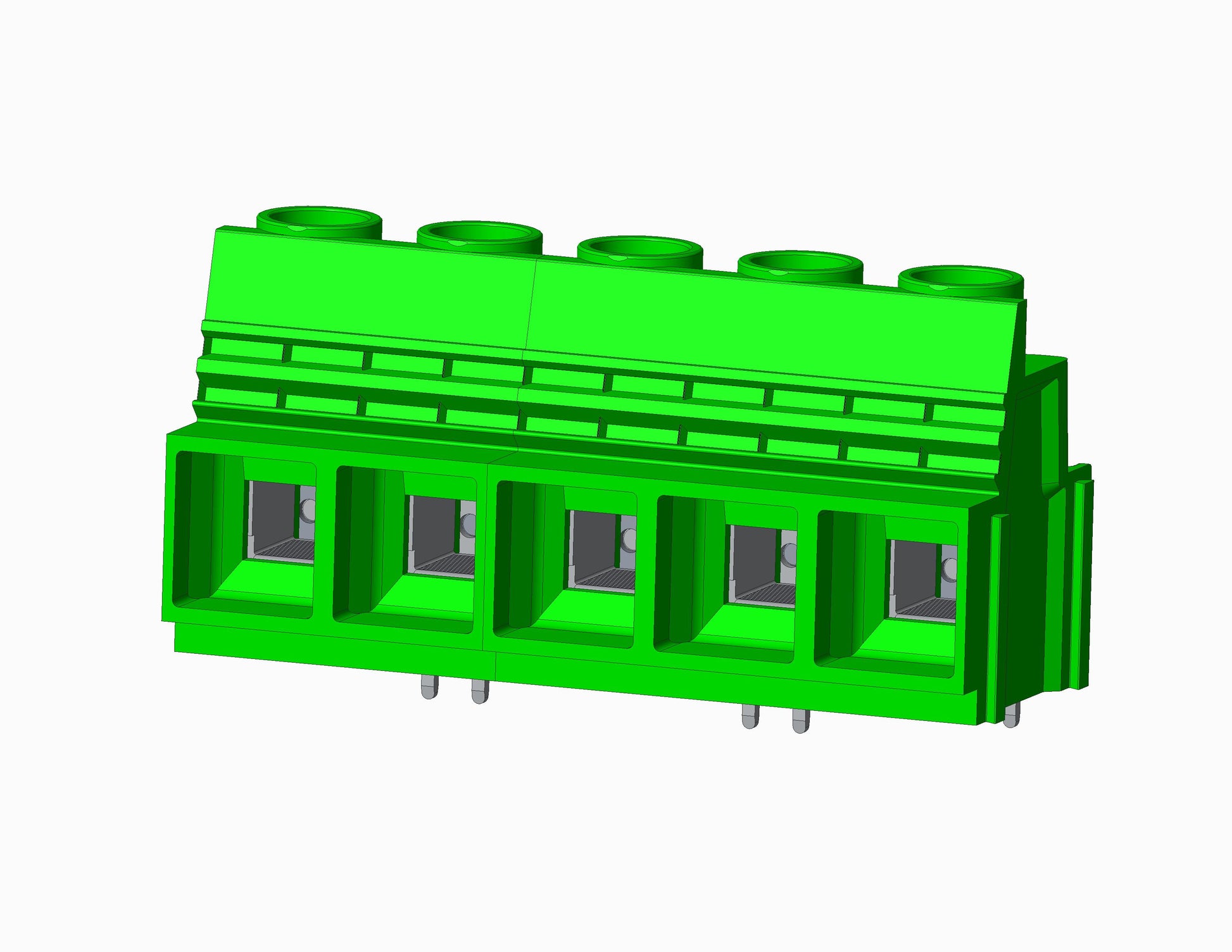

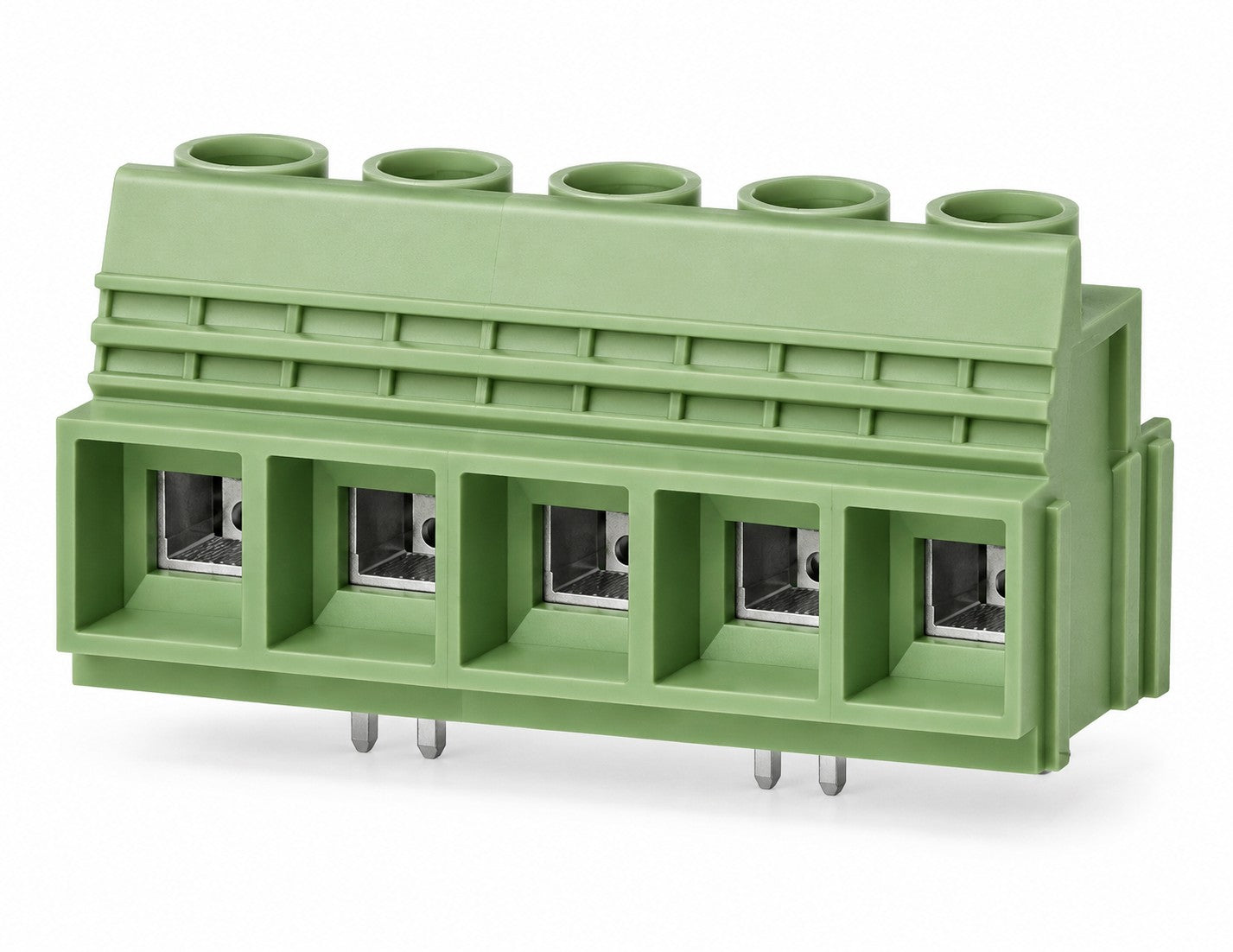

Name: EB1140 SERIES Rising Cage Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Screw > Direct Solder > Rising Cage > Power (6mm-20mm) > EB1140

Approvals

1 1

Power

EB1140 Series - Screw - Direct Solder - Rising Cage - 12.7mm

Request Sample Request 3D File

EB1140 Screw Direct Solder Rising Cage Blocks. It has a centerline spacing of 12.7mm. The voltage rating is 600 VAC. The current rating is 65 Amps. It accommodates wire sizes from 6-20AWG. It includes up to 24 positions. The torque rating is 19.0 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. The contact block is made of Steel Stamping. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 12.70mm Spacing (0.500")

Electrical

Voltage Rating 600 VAC

Current Rating 65 Amps

Wire Range Min / Max 6-20AWG

Mechanical

Torque 19.0 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M4.5

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Block Material: Steel Stamping

Contact Solder Pin Material: Brass, Tin Plated

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
