Name: EB1120-XX-800 SERIES Rising Cage Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Screw > Direct Solder > Rising Cage > Power (6mm-20mm) > EB1120-XX-800

Approvals

1 1

Power

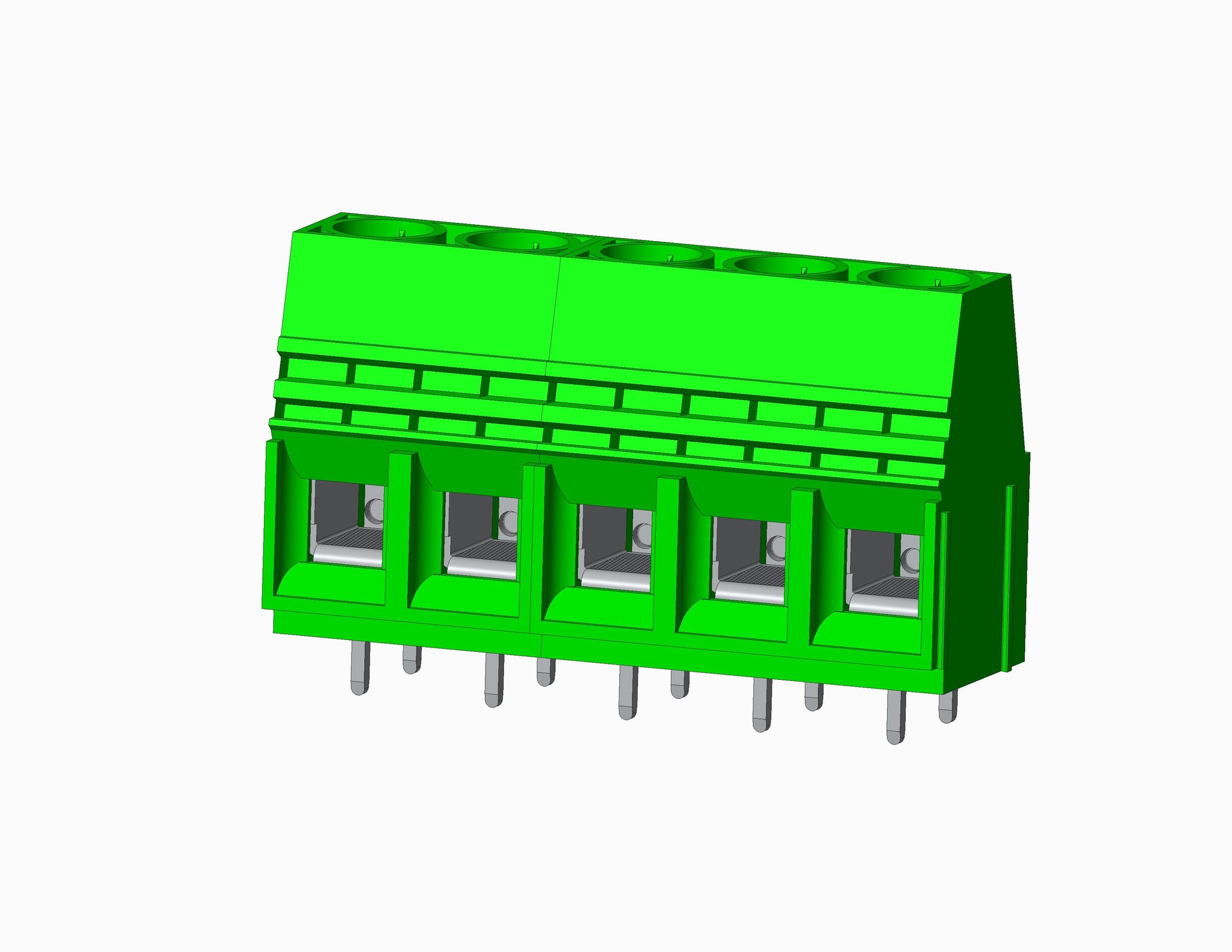

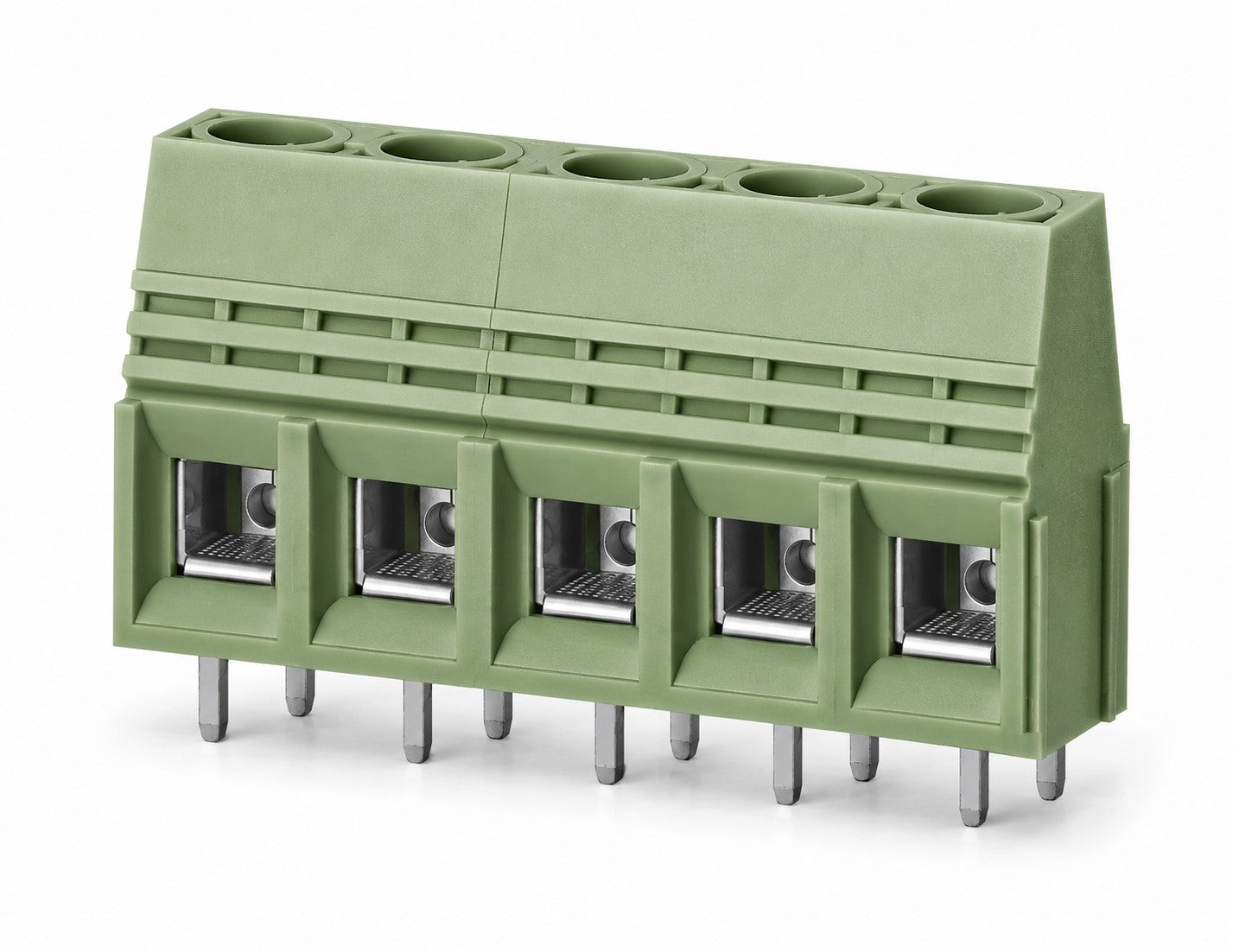

EB1120-XX-800 Series - Screw - Direct Solder - Rising Cage - 10.16mm

Request Sample Request 3D File

EB1120-XX-Screw Direct Solder Rising Cage Blocks. It has a centerline spacing of 10.16mm. The voltage rating is 300 VAC. The current rating is 65 Amps. It accommodates wire sizes from 6-20AWG. It includes up to 12 positions. The torque rating is 19.0 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. The contact block is made of Stamped Steel, Zinc Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0. Feature: Dual Contact Legs.

Maximum number of positions 12

Centerline Spacing 10.16mm Spacing (0.400")

Mechanical

Torque: 19.0 lbs-in. Max.

Soldering Temperatures: 260°C, 500°F for 5 seconds Max

Electrical

Voltage Rating: 300 VAC

Current Rating: 65 Amps

Wire Range Min / Max: 6-20AWG

Material

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M4.5

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Block Material: Stamped Steel, Zinc Plated

Contact Solder Pin Material: Copper, Tin Plated

Color: Green

Product Notes

EBY's Cage Clamp, direct solder, mini-blocks are the ideal choice for high reliability applications or those that require frequent insertion and withdrawals of the wiring harness. • Available in modular and molded to size constructions. • Standard molding materials to all UL94V-O flammability class. • High temperature materials for re-flow applications available. • Custom marking, screws and pin length readily available.

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
