Name: EB1088-XX-X02 SERIES Tool Required Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Direct Solder > Tool Required > Standard (5mm-5.08mm) > EB1088-XX-X02

Approvals

1 1

Standard

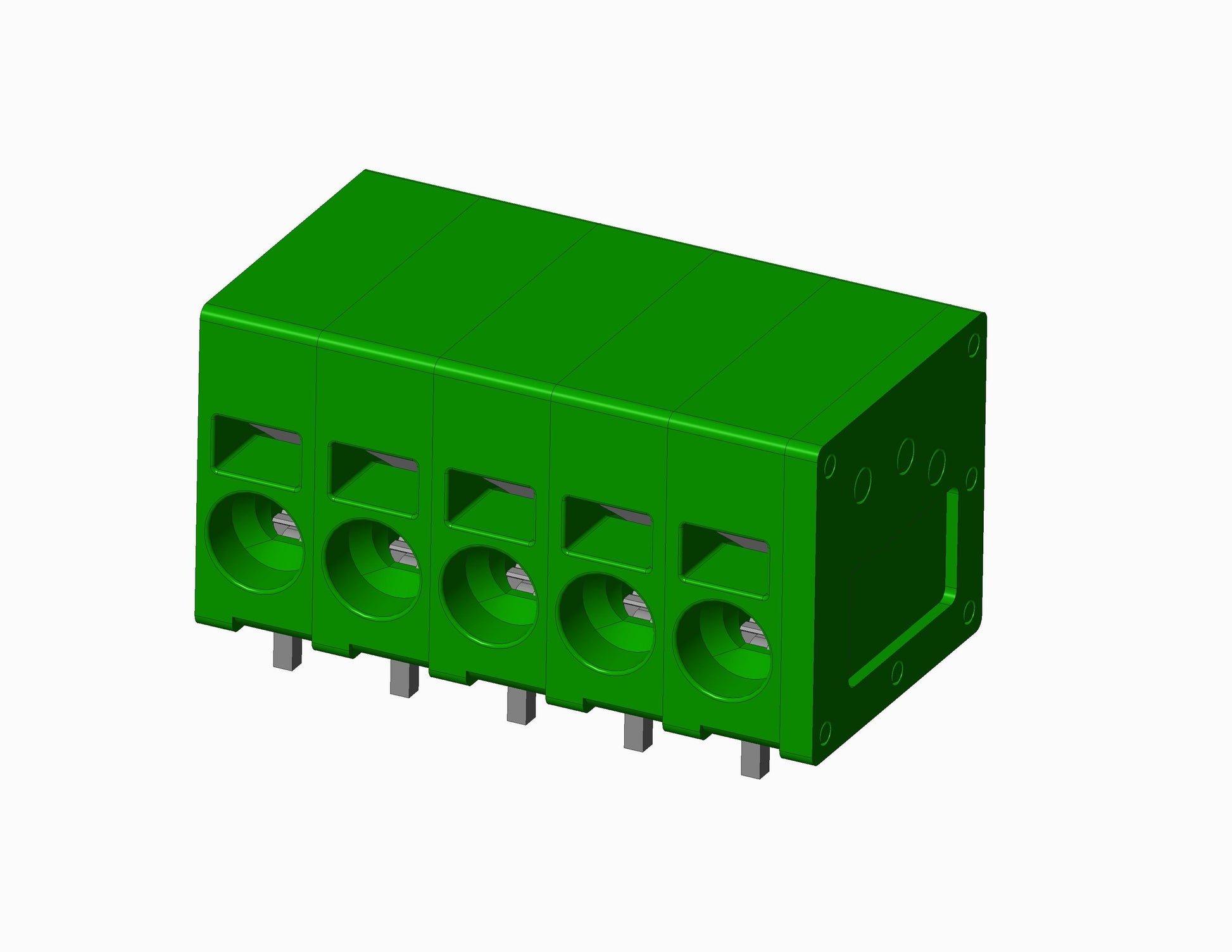

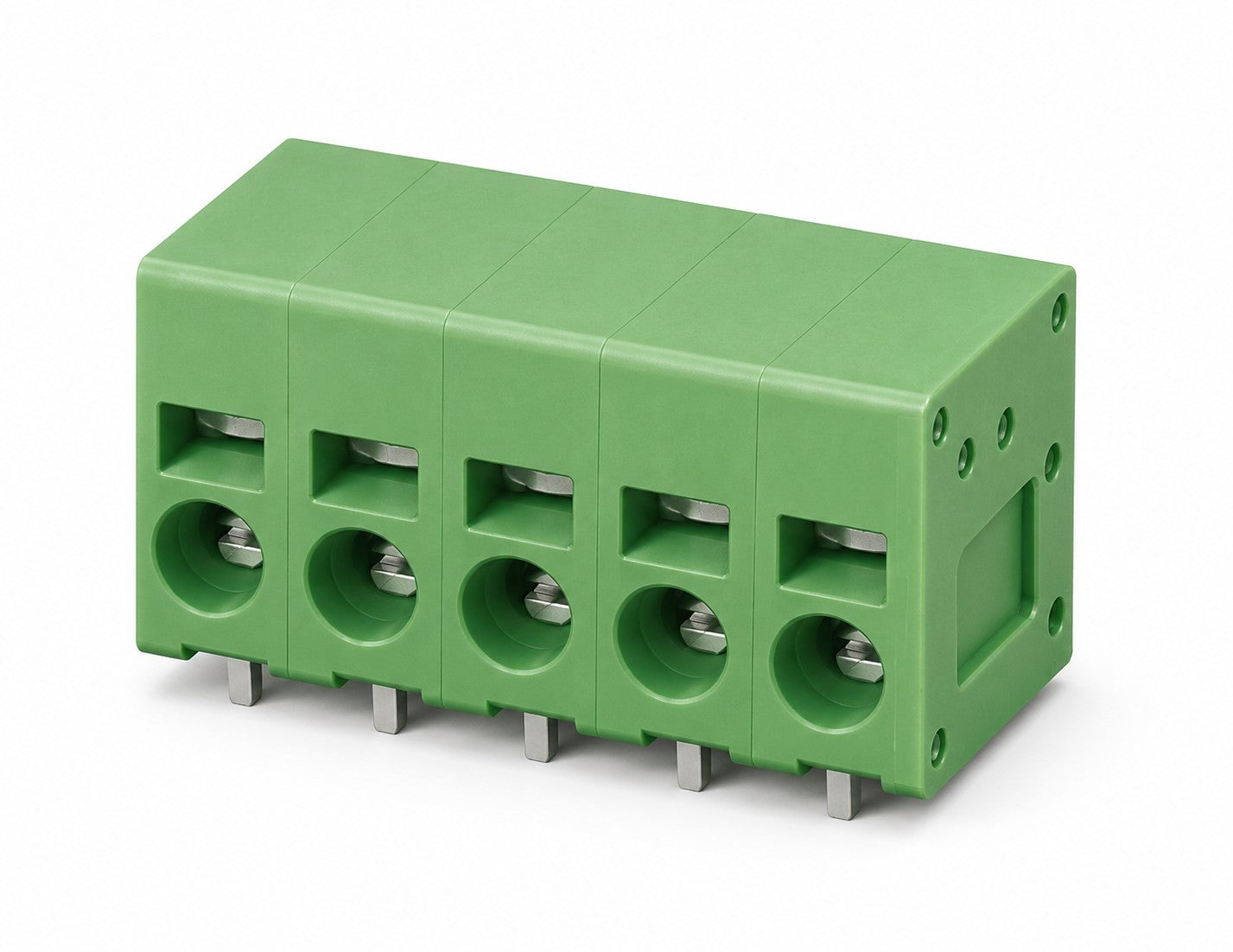

EB1088-XX-X02 Series - Spring - Direct Solder - Tool Required - 5.0mm

Request Sample Request 3D File

EB1088-XX-X02 Tool Required Pluggable Blocks. It has a centerline spacing of 5.0mm. The voltage rating is 300 VAC. The current rating is (Solid): 13 Amps,(Stranded): 16 Amps. It accommodates wire sizes from (Solid): 14-24AWG (Stranded): 12-24AWG. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0. Feature: Horizontal Alignment.

Maximum number of positions 24

Centerline Spacing 5.00mm Spacing (0.197")

Electrical

Voltage Rating 300 VAC

Current Rating (Solid): 13 Amps,(Stranded): 16 Amps

Wire Range Min / Max (Solid): 14-24AWG (Stranded): 12-24AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Wire Retention Spring: Stainless Steel

Contact Solder Pin Material: Brass, Tin Plated

Color: Please See PDF

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
