Name: AC1381M SERIES Pluggable Headers
Brand: ebyelectro
Availability: InStock

Headers > Shrouded > Compact (3.5mm-4.57mm) > AC1381M

Approvals

1 1

Compact

AC1381M Series - Shrouded - 3.81mm

Request Sample Request 3D File

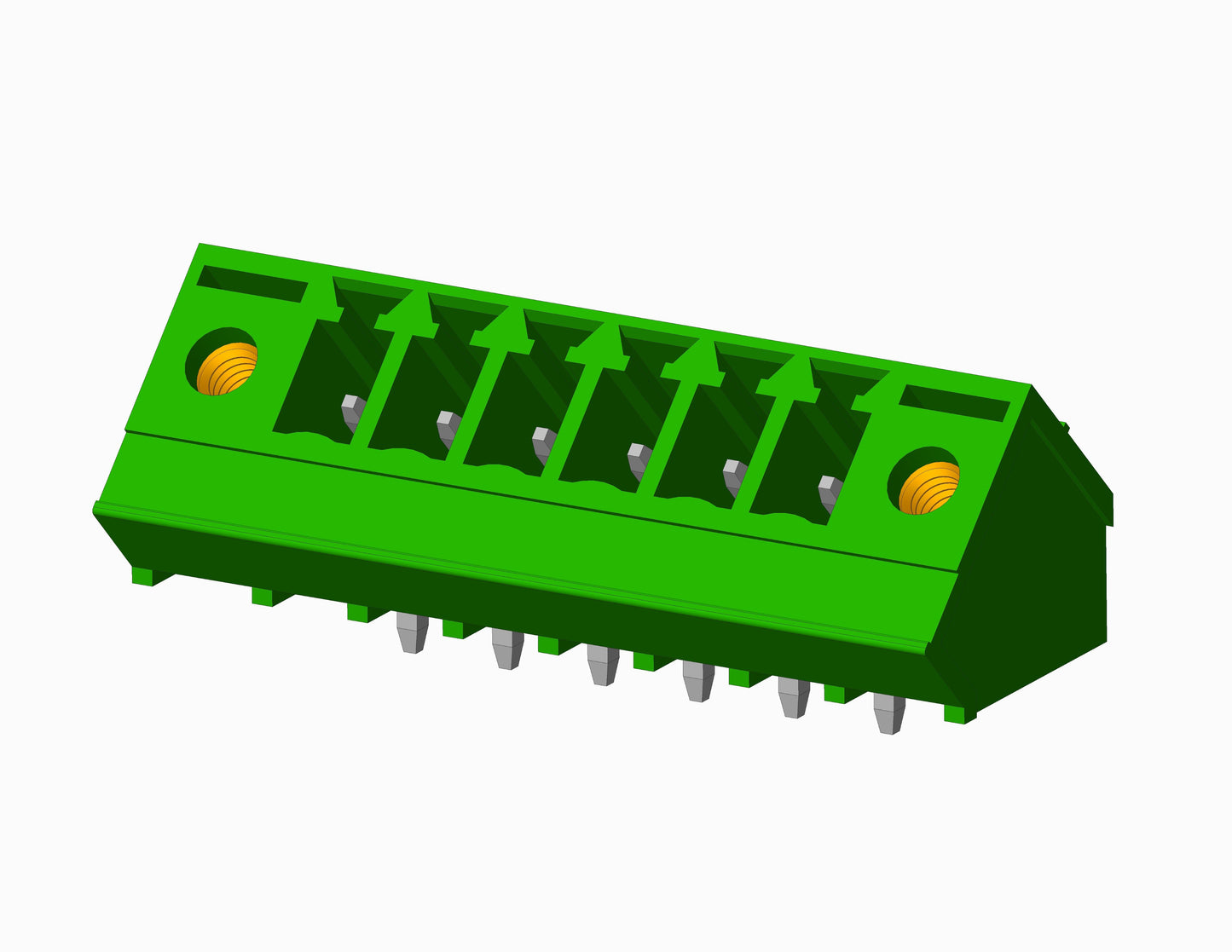

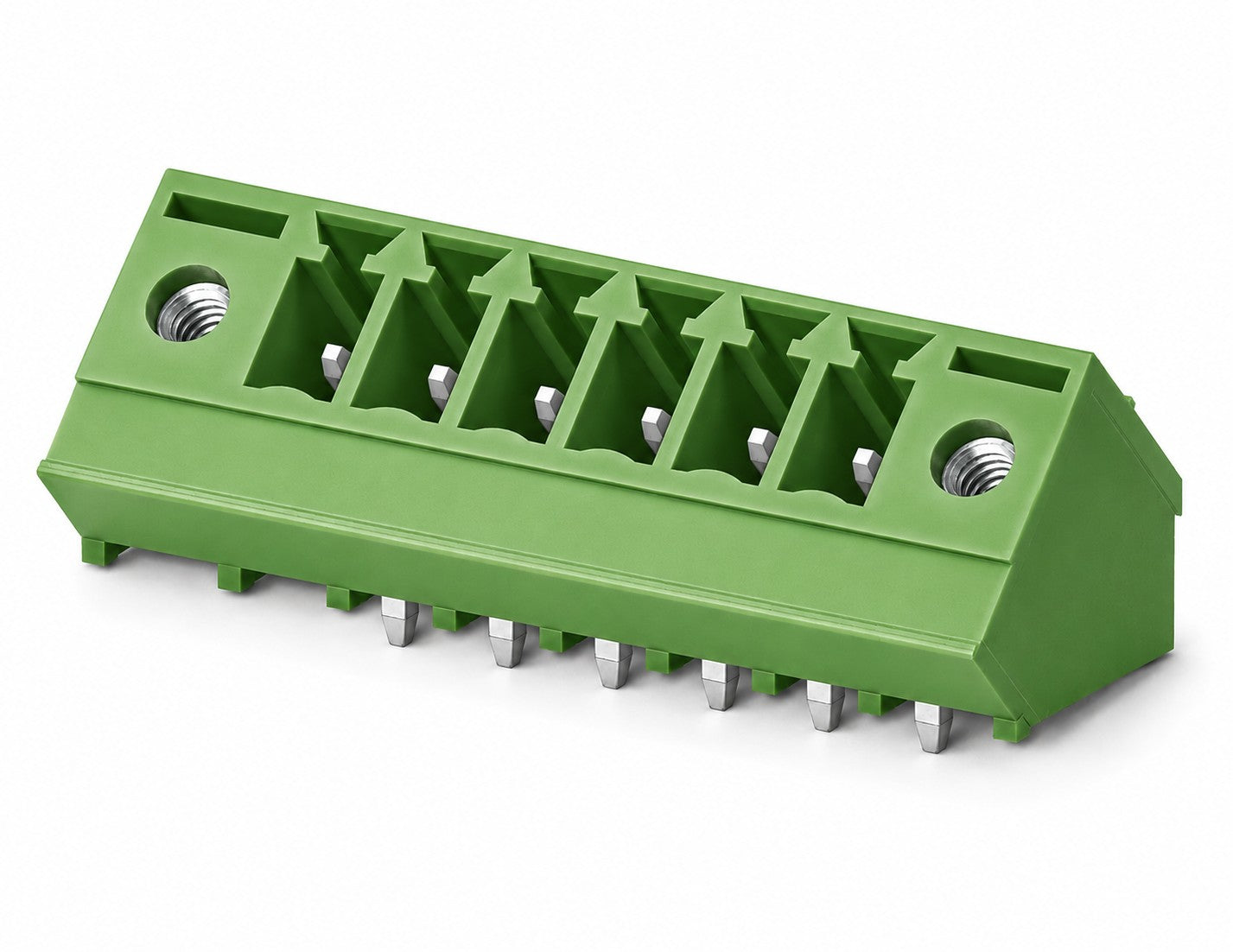

AC1381M Pluggable Headers. It has a centerline spacing of 3.81mm. The voltage rating is 300 VAC. The current rating is 8 Amps. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. It features a terminal screw made of Brass. The housing is constructed from Polyamide, UL 94V-0. Feature: Angled Closed, Mountable.

Maximum number of positions 24

Centerline Spacing 3.81mm Spacing (0.150")

Electrical

Voltage Rating 300 VAC

Current Rating 8 Amps

Wire Range Min / Max

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size M2.5

Terminal Screw Material Brass

Contact Block Material

Contact Solder Pin Material Copper, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
