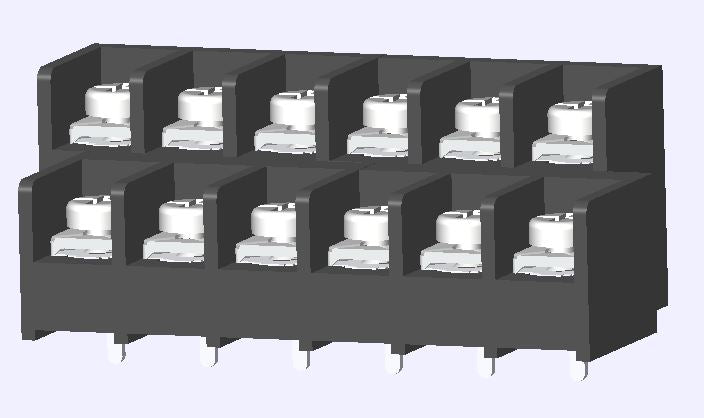

  • 8802-XX-N-XX SERIES Barrier Blocks
  • 8802-XX-N-XX SERIES Barrier Blocks dimensional drawing
1 1

Power

8802-XX-N-XX Series - Single Barrier - 0.375" (9.53mm)

Request Sample Request 3D File

8802-XX-N-XX Barrier Blocks. It has a centerline spacing of 9.53mm. The voltage rating is 300 VAC. The current rating is 20 Amps. It accommodates wire sizes from 12-22AWG. It includes up to 40 positions. The torque rating is 10.0 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polycarbonate, UL 94V-0. Feature: Dual Level, Staggered.

Maximum number of positions 40

Centerline Spacing 0.375" (9.53mm)

Electrical

Voltage Rating 300 VAC

Current Rating 20 Amps

Wire Range Min / Max 12-22AWG

Mechanical

Torque 10.0 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polycarbonate, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size #6-32

Terminal Screw Material

Contact Block Material

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Black
