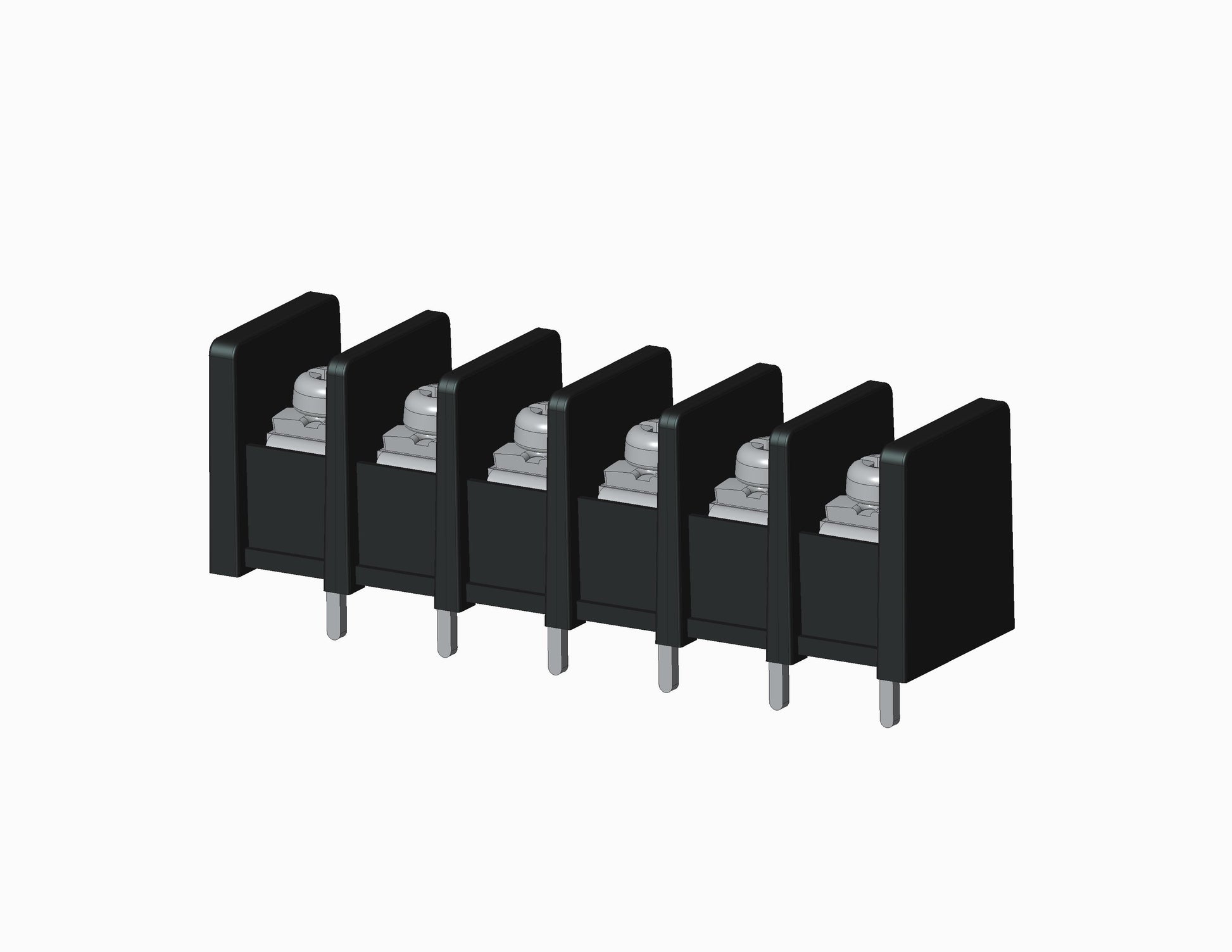

5200 Series - Single Barrier - 0.325" (8.25mm)

Request Sample Request 3D File

5200 Barrier Blocks. It has a centerline spacing of 8.25mm. The voltage rating is 300 VAC. The current rating is 20 Amps. It accommodates wire sizes from 12-26AWG. It includes up to 16 positions. The torque rating is 8.0 lbs-in max. It features a terminal screw made of Steel, Ni Plated. The housing is constructed from Polyamide, UL 94V-0. Feature: Centerline Contacts.

Maximum number of positions 16

Centerline Spacing 0.325" (8.25mm)

Electrical

Voltage Rating 300 VAC

Current Rating 20 Amps

Wire Range Min / Max 12-26AWG

Mechanical

Torque 8.0 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size M3.0

Terminal Screw Material Steel, Ni Plated

Contact Block Material

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Black

Cover
