Name: 5100 SERIES Barrier Blocks
Brand: ebyelectro
Availability: InStock

Barrier Blocks > Single Barrier > Power (0.236”-0.787”) > 5100

Approvals

1 1

Power

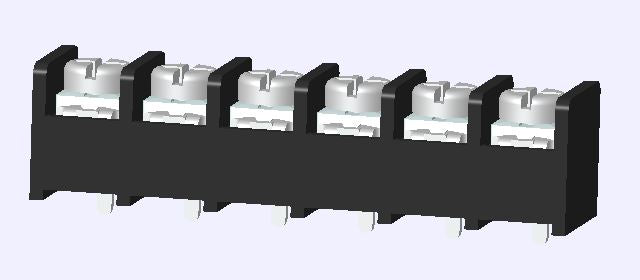

5100 Series - Single Barrier - 0.325" (8.25mm)

Request Sample Request 3D File

5100 Barrier Blocks. It has a centerline spacing of 8.25mm. The voltage rating is 300 VAC. The current rating is 20 Amps. It accommodates wire sizes from 12-26AWG. It includes up to 26 positions. The torque rating is 10.0 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polycarbonate, UL 94V-0. Feature: Offset Contacts, Open Bottom.

Maximum number of positions 26

Centerline Spacing 0.325" (8.25mm)

Electrical

Voltage Rating 300 VAC

Current Rating 20 Amps

Wire Range Min / Max 12-26AWG

Mechanical

Torque 10.0 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polycarbonate, UL 94V-0

Terminal Screw Size: #6-32, Phil Slot

Contact Solder Pin Material: Brass, Tin Plated

Color: Black

Product Notes

For Additional Hardware & Printing Options, see the product PDF or click here

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
