5000 Series - Single Barrier - 0.325" (8.25mm)

Request Sample Request 3D File

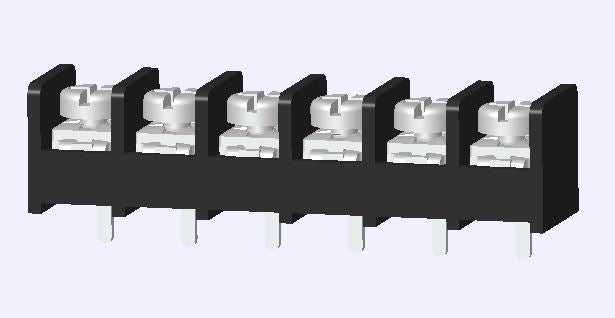

5000 Barrier Blocks. It has a centerline spacing of 8.25mm. The voltage rating is 300 VAC. The current rating is 20 Amps. It accommodates wire sizes from 12-26AWG. It includes up to 26 positions. The torque rating is 10.0 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polycarbonate, UL 94V-0. Feature: Offset Contacts, Open Bottom.

Maximum number of positions 26

Centerline Spacing 0.325" (8.25mm)

Electrical

Voltage Rating 300 VAC

Current Rating 20 Amps

Wire Range Min / Max 12-26AWG

Mechanical

Torque 10.0 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polycarbonate, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size #6-32, Phil Slot

Terminal Screw Material

Contact Block Material

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Black

Cover
