Power

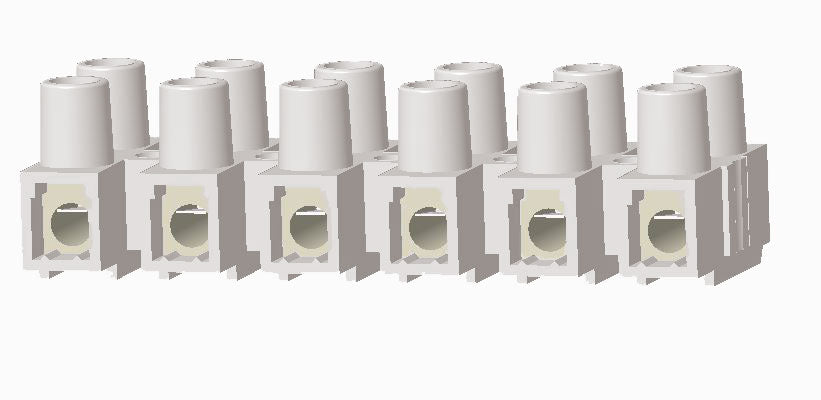

EBY 500 Series - 10.0mm

Request Sample Request 3D File

500 Chassis Blocks Pluggable Blocks. It has a centerline spacing of 10.0mm. The voltage rating is UL: 250 VAC / CSA: 300 VAC. The current rating is UL: 30 Amps / CSA: 25 Amps. It includes up to 12 positions. The torque rating is 4.5 lbs-in max. The contact block is made of Brass, Tin Plated. It features a terminal screw made of Steel, Zinc Plated. The housing is constructed from Polyamide, UL 94V-2.

Maximum number of positions 12

Centerline Spacing 10.00mm Spacing (0.394")

Electrical

Voltage Rating UL: 250 VAC / CSA: 300 VAC

Current Rating UL: 30 Amps / CSA: 25 Amps

Wire Range Min / Max

Mechanical

Torque 4.5 lbs-in. Max.

Soldering Temperatures

Insulator Body Material: Polyamide, UL 94V-2

Terminal Screw Size: M3 x 6.0mm

Terminal Screw Material: Steel, Zinc Plated

Contact Block Material: Brass, Tin Plated

Contact Solder Pin Material: Stainless Steel

Color: Natural

Product Notes

WIRE RANGES: With Wire Guard: 14-22AWG / Without Wire Guard: 10-22AWG
