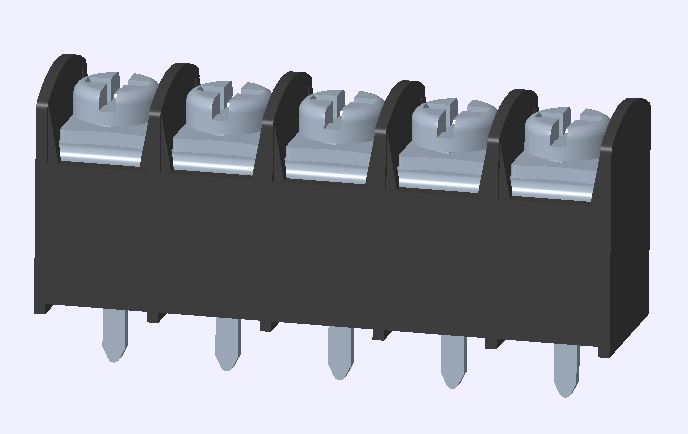

  • 2900 SERIES Barrier Blocks
  • 2900 SERIES Barrier Blocks dimensional drawing
1 1

Power

2900 Series - Single Barrier - 0.300" (7.62mm)

Request Sample Request 3D File

2900 Barrier Blocks. It has a centerline spacing of 7.62mm. The voltage rating is 300 VAC. The current rating is 15 Amps. It accommodates wire sizes from 14-22AWG. It includes up to 25 positions. The torque rating is 7.5 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. It features a terminal screw made of Steel, Zinc Plated, Phil Slotted. The housing is constructed from Thermoplastic, UL 94V-0.

Maximum number of positions 25

Centerline Spacing 0.300" (7.62mm)

Electrical

Voltage Rating 300 VAC

Current Rating 15 Amps

Wire Range Min / Max 14-22AWG

Mechanical

Torque 7.5 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Thermoplastic, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size #5-40

Terminal Screw Material Steel, Zinc Plated, Phil Slotted

Contact Block Material

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.
