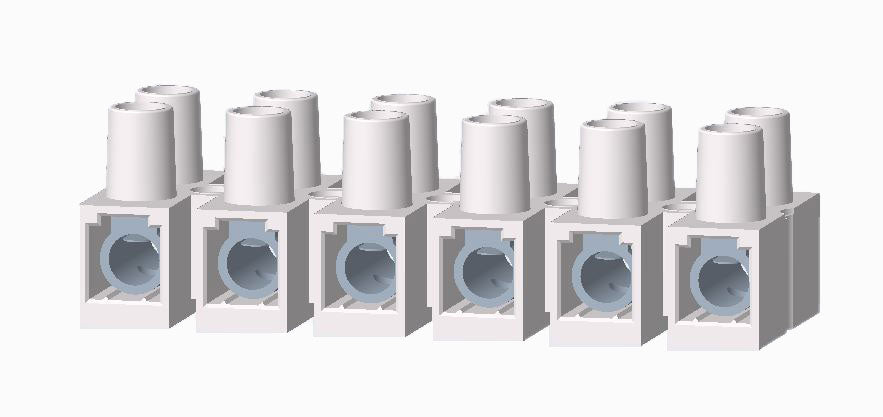

Name: EBY 2000 SERIES Chassis Blocks
Brand: ebyelectro
Availability: InStock

Chassis Feedthrough > Power (6mm-20mm) > 2000

Approvals

1 1

Power

EBY 2000 Series - 14.5mm

Request Sample Request 3D File

2000 Chassis Blocks Pluggable Blocks. It has a centerline spacing of 14.5mm. The voltage rating is UL: 600 VAC / CSA: 300 VAC. The current rating is UL: 65 Amps / CSA: 75 Amps. It accommodates wire sizes from 6-14AWG. It includes up to 12 positions. The torque rating is 18.0 lbs-in max. The contact block is made of Brass, Tin Plated. It features a terminal screw made of Steel, Zinc Plated. The housing is constructed from Polyamide, UL 94V-2.

Maximum number of positions 12

Centerline Spacing 14.50mm Spacing (0.571")

Electrical

Voltage Rating UL: 600 VAC / CSA: 300 VAC

Current Rating UL: 65 Amps / CSA: 75 Amps

Wire Range Min / Max 6-14AWG

Mechanical

Torque 18.0 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material: Polyamide, UL 94V-2

Terminal Screw Size: M5 x 10.0mm

Terminal Screw Material: Steel, Zinc Plated

Contact Block Material: Brass, Tin Plated

Wire Guard Material: Stainless Steel

Color: Natural

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
