  • 1500 SERIES Europa Blocks
  • EBY 1500 SERIES Chassis Blocks dimensional drawing
1 1

Power

EBY 1500 Series - 13.5mm

Request Sample Request 3D File

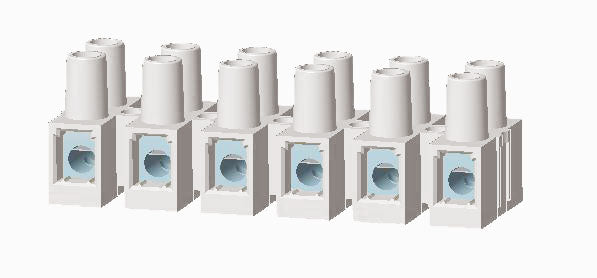

1500 Chassis Blocks Pluggable Blocks. It has a centerline spacing of 13.5mm. The voltage rating is UL: 300 VAC / CSA: 300 VAC. The current rating is UL: 40 Amps / CSA: 55 Amps. It accommodates wire sizes from 8-18AWG. It includes up to 12 positions. The torque rating is 10.5 lbs-in max. The contact block is made of Brass, Tin Plated. It features a terminal screw made of Steel, Zinc Plated. The housing is constructed from Polyamide, UL 94V-2.

Maximum number of positions 12

Centerline Spacing 13.50mm Spacing (0.531")

Electrical

Voltage Rating UL: 300 VAC / CSA: 300 VAC

Current Rating UL: 40 Amps / CSA: 55 Amps

Wire Range Min / Max 8-18AWG

Mechanical

Torque 10.5 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material Polyamide, UL 94V-2

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size M4 x 9.0mm

Terminal Screw Material Steel, Zinc Plated

Contact Block Material Brass, Tin Plated

Contact Solder Pin Material

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material Stainless Steel

Color Natural

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: 1500 Series - - (13.5mm)
