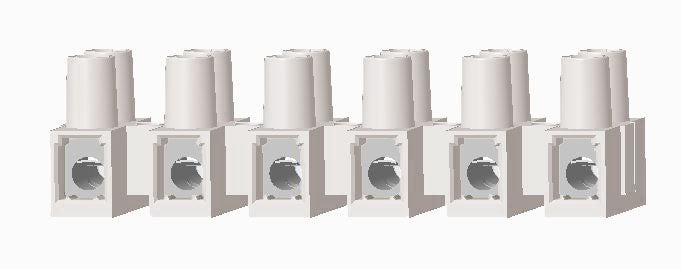

Name: EBY 1000 SERIES Chassis Blocks
Brand: ebyelectro
Availability: InStock

Chassis Feedthrough > Power (6mm-20mm) > 1000

Approvals

1 1

Power

EBY 1000 Series - 12.0mm

Request Sample Request 3D File

1000 Chassis Blocks Pluggable Blocks. It has a centerline spacing of 12.0mm. The voltage rating is UL: 250 VAC / CSA: 300 VAC. The current rating is UL: 40 Amps / CSA: 25 Amps. It accommodates wire sizes from 10-22AWG. It includes up to 12 positions. The torque rating is 7.0 lbs-in max. The contact block is made of Brass, Tin Plated. It features a terminal screw made of Steel, Zinc Plated. The housing is constructed from Polyamide, UL 94V-2.

Maximum number of positions 12

Centerline Spacing 12.00mm Spacing (0.472")

Electrical

Voltage Rating UL: 250 VAC / CSA: 300 VAC

Current Rating UL: 40 Amps / CSA: 25 Amps

Wire Range Min / Max 10-22AWG

Mechanical

Torque 7.0 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material: Polyamide, UL 94V-2

Terminal Screw Size: M3 x 7.0mm

Terminal Screw Material: Steel, Zinc Plated

Contact Block Material: Brass, Tin Plated

Contact Solder Pin Material: test1

Wire Guard Material: Stainless Steel

Color: Natural

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
