Maximum number of positions: 12

Centerline Spacing: 10.00mm Spacing (0.394")

See DIMENSIONAL DRAWINGS

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 55 Amps

Wire Range Min / Max: 6-16AWG

MECHANICAL:

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Contact Block Material: Copper, Matte Tin over Ni Plating

Wire Retention Spring: Stainless Steel

Color: Please See PDF

PRODUCT NOTES:

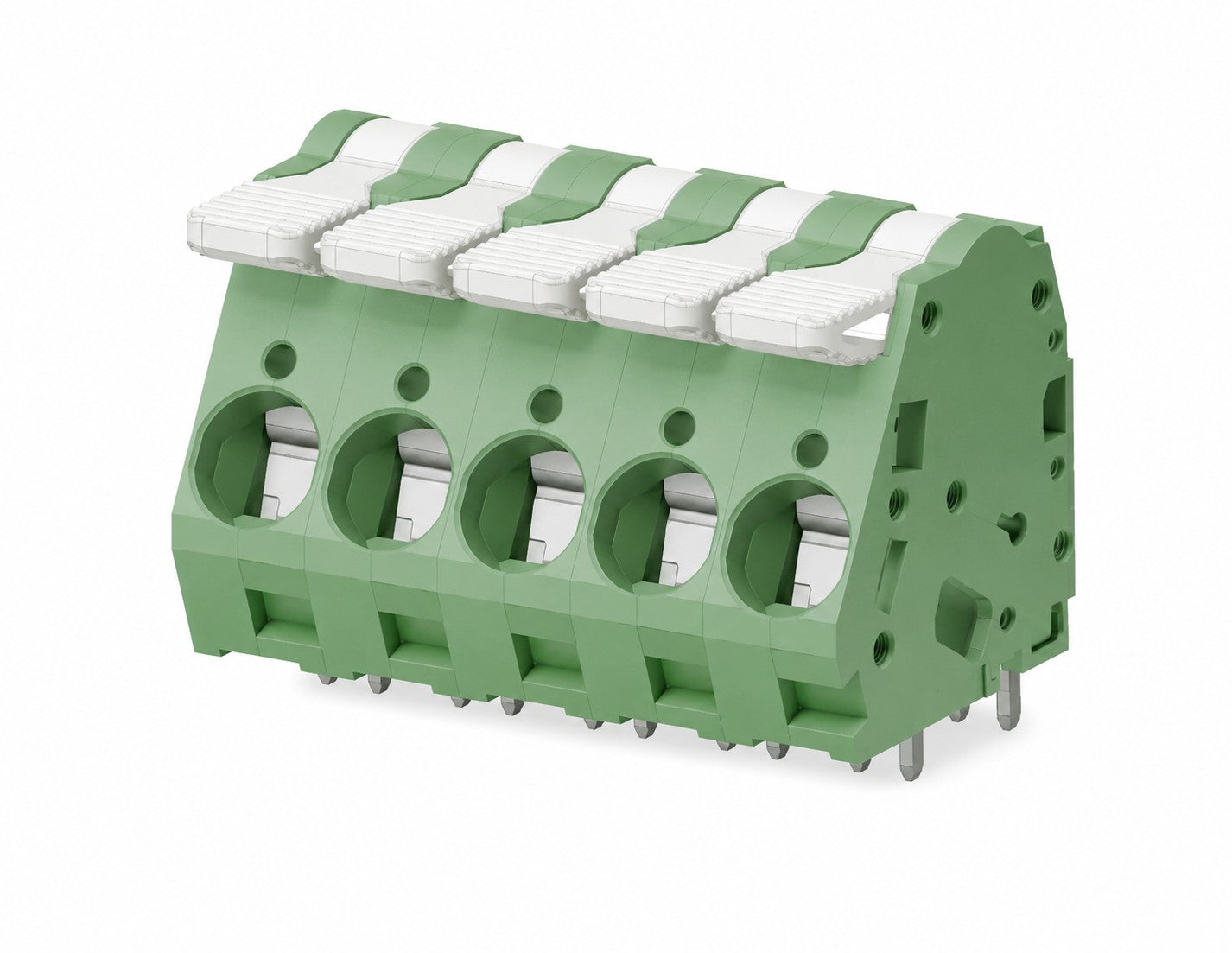

High-Power Blocks with Lever Actuated Spring Clamp
See color options in PDF
