CH1581MN Series
QUOTE AND SAMPLES
Fill out my online form.

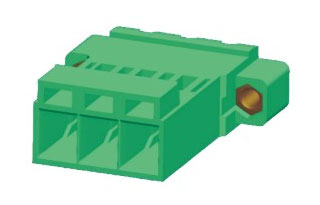

CH1581MN SERIES Screwless Pluggable Blocks

Maximum number of positions: 24

Centerline Spacing: 5.08mm Spacing (0.200")

FEATURE:

Mounting Nut, High Profile

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 10 Amps

MECHANICAL:

Not Applicable

MATERIAL:

Mounting Flange Nut: M2.5, Brass

PRODUCT NOTES:

This block is a housing for a Crimpable Pin Insert (C1219-XX)

DOWNLOAD

Download Product PDF

CH1581MN-XX-500.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

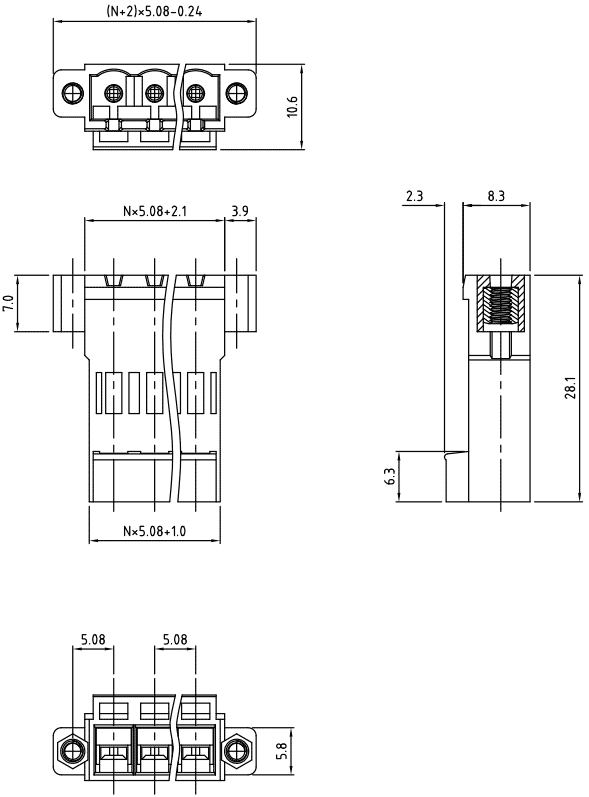

DIMENSIONAL DRAWING

N = Number of Positions
