VM350 Series
QUOTE AND SAMPLES
Fill out my online form.

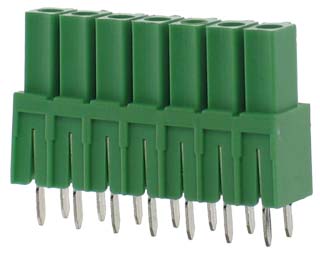

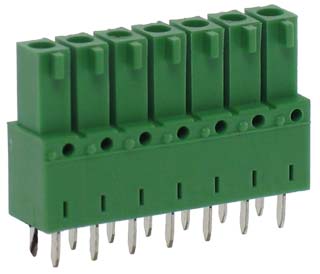

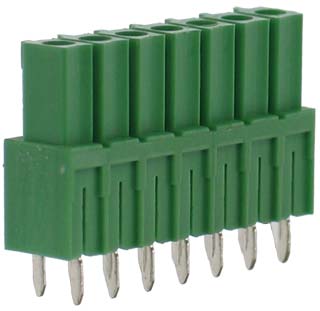

VM350 SERIES Pluggable Headers

Maximum number of positions: 24

Centerline Spacing: 3.50mm Spacing (0.138")

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 8 Amps

MECHANICAL:

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Contact Clip Material: PhBz, Tin Plated

DOWNLOAD

Download Product PDF

VM350-XX-500.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

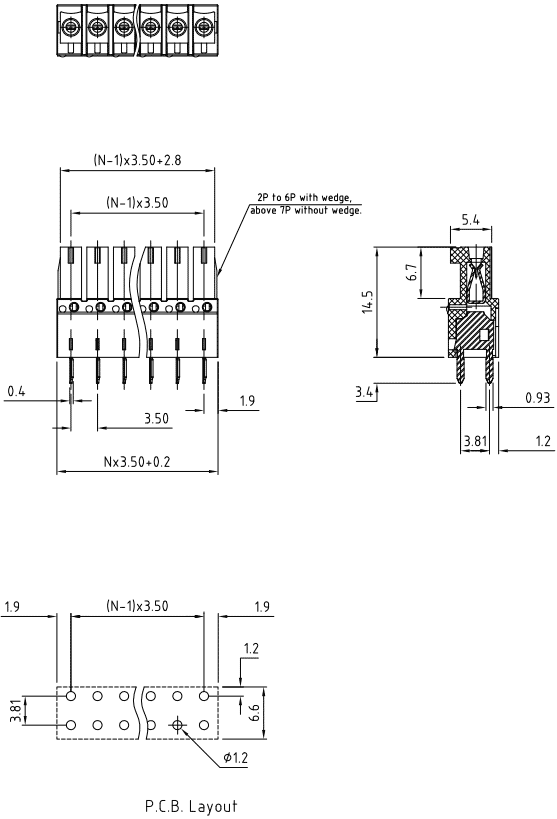

DIMENSIONAL DRAWING

N = Number of Positions
