EB3560M-XX-800 Series
QUOTE AND SAMPLES
Fill out my online form.

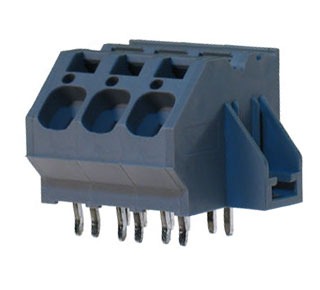

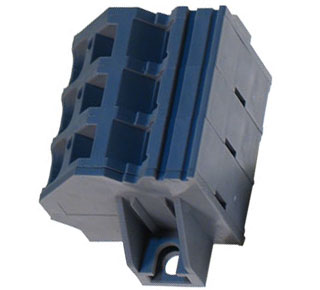

EB3560M-XX-800 SERIES Screwless Blocks

Maximum number of positions: 12

Centerline Spacing: 10.00mm Spacing (0.394")

FEATURE:

With Mounting Flange

ELECTRICAL:

Voltage Rating: 600 VAC

Current Rating: 37 Amps

Wire Range Min / Max: 12-26AWG

MECHANICAL:

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Contact Block Material: Brass, Tin Plated

Wire Retention Spring: Stainless Steel

DOWNLOAD

Download Product PDF

EB3560M-XX-800.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

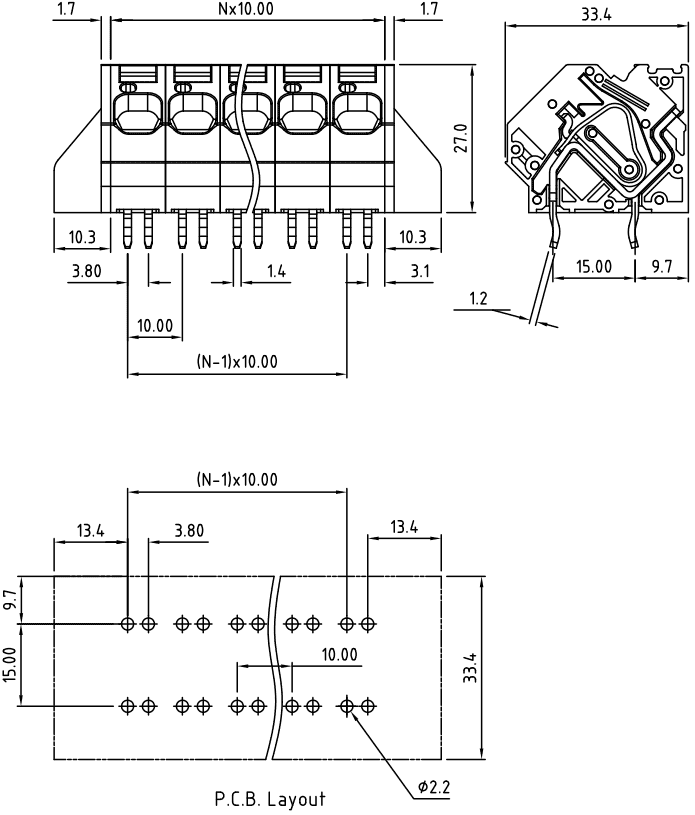

DIMENSIONAL DRAWING

N = Number of Positions
